1.Our cutting heads are designed with excellent compatibility and can be integrated with most mainstream fiber laser sources on the market, including brands like IPG, Raycus, Maxphotonics, and others. Please provide the brand and model of your laser source, and we will confirm the specific compatibility and any necessary adapters.
2.Autofocus: Automatically adjusts the focus position based on pre-set parameters, which is significantly faster and more
accurate, especially when frequently switching between different material types and thicknesses. It reduces setup time and minimizes human error.
3.Our heads can cut reflective materials, but it requires careful parameter setup (e.g., correct gas, power, and
speed). For frequent or thick reflective material cutting, we recommend specific models with enhanced internal protection to prevent damage from back-reflection.
|
Model |

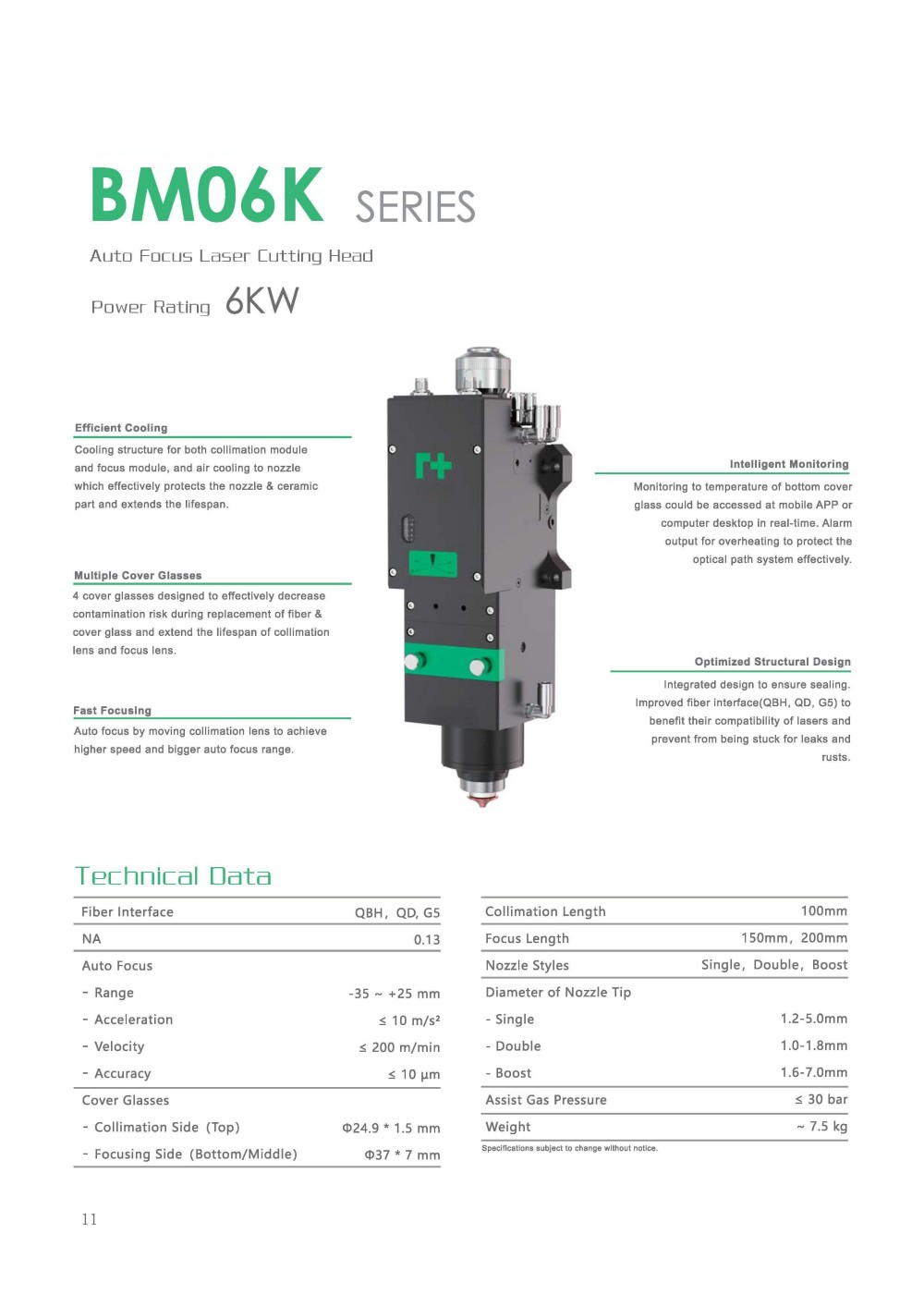

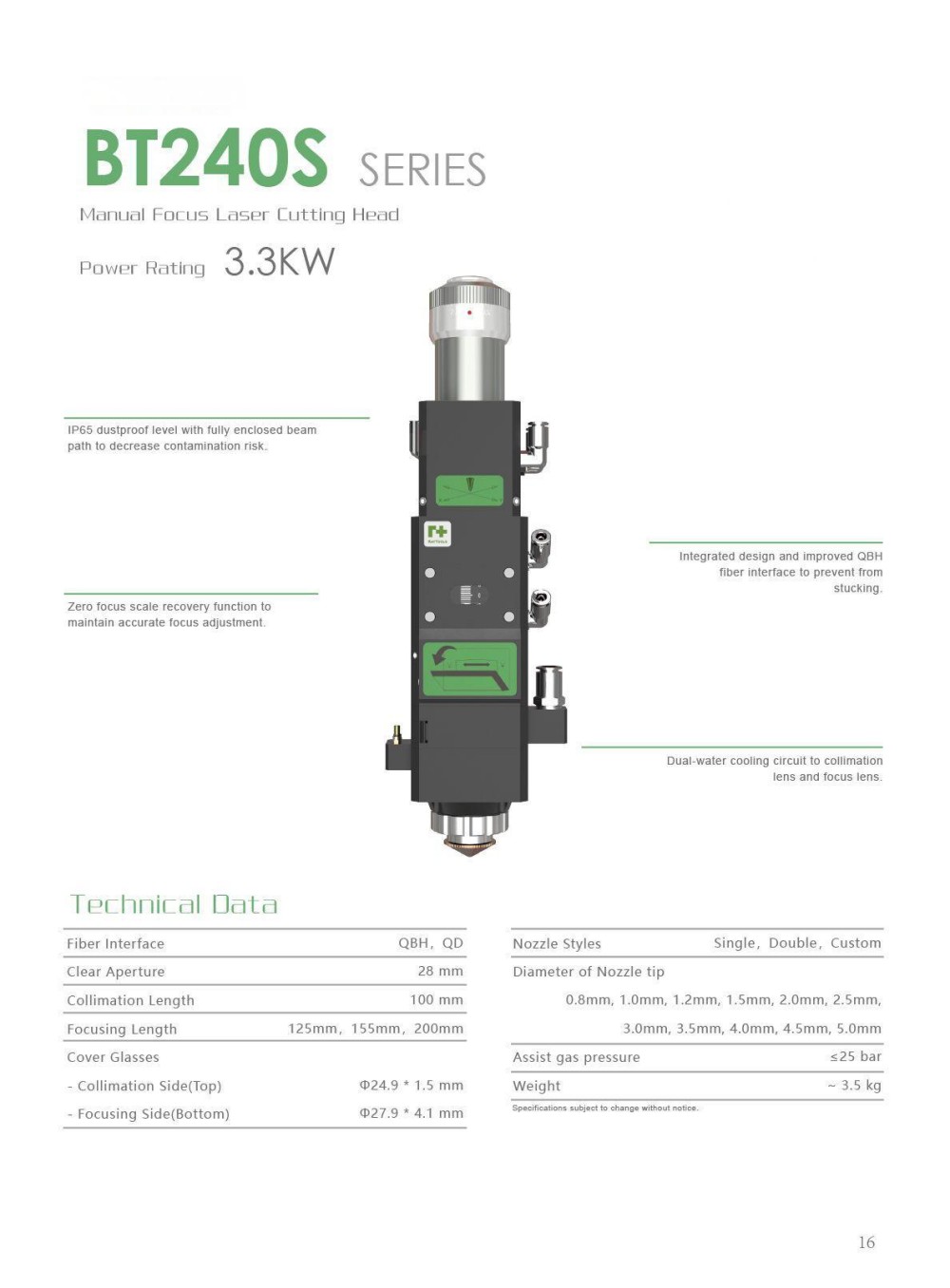

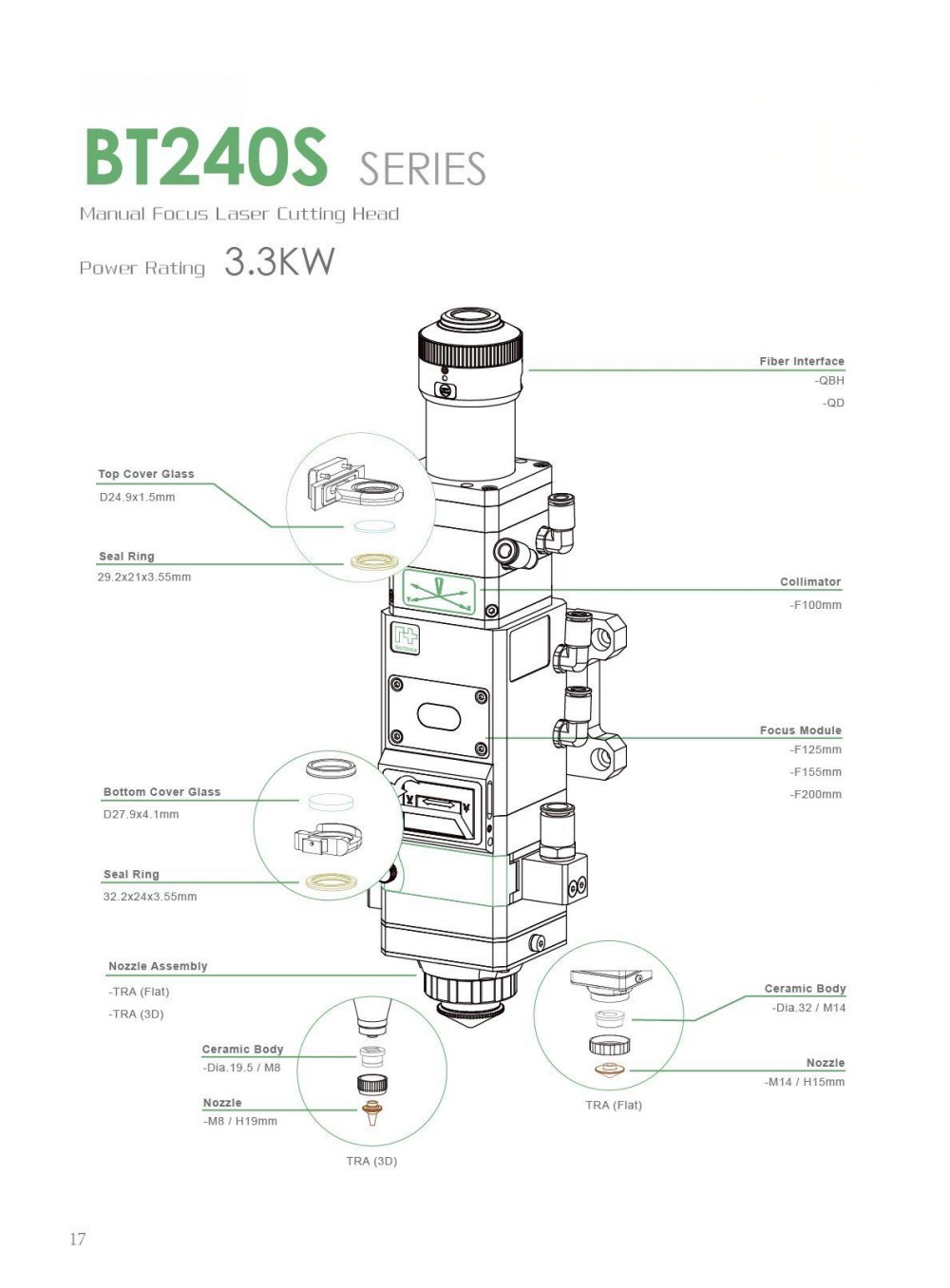

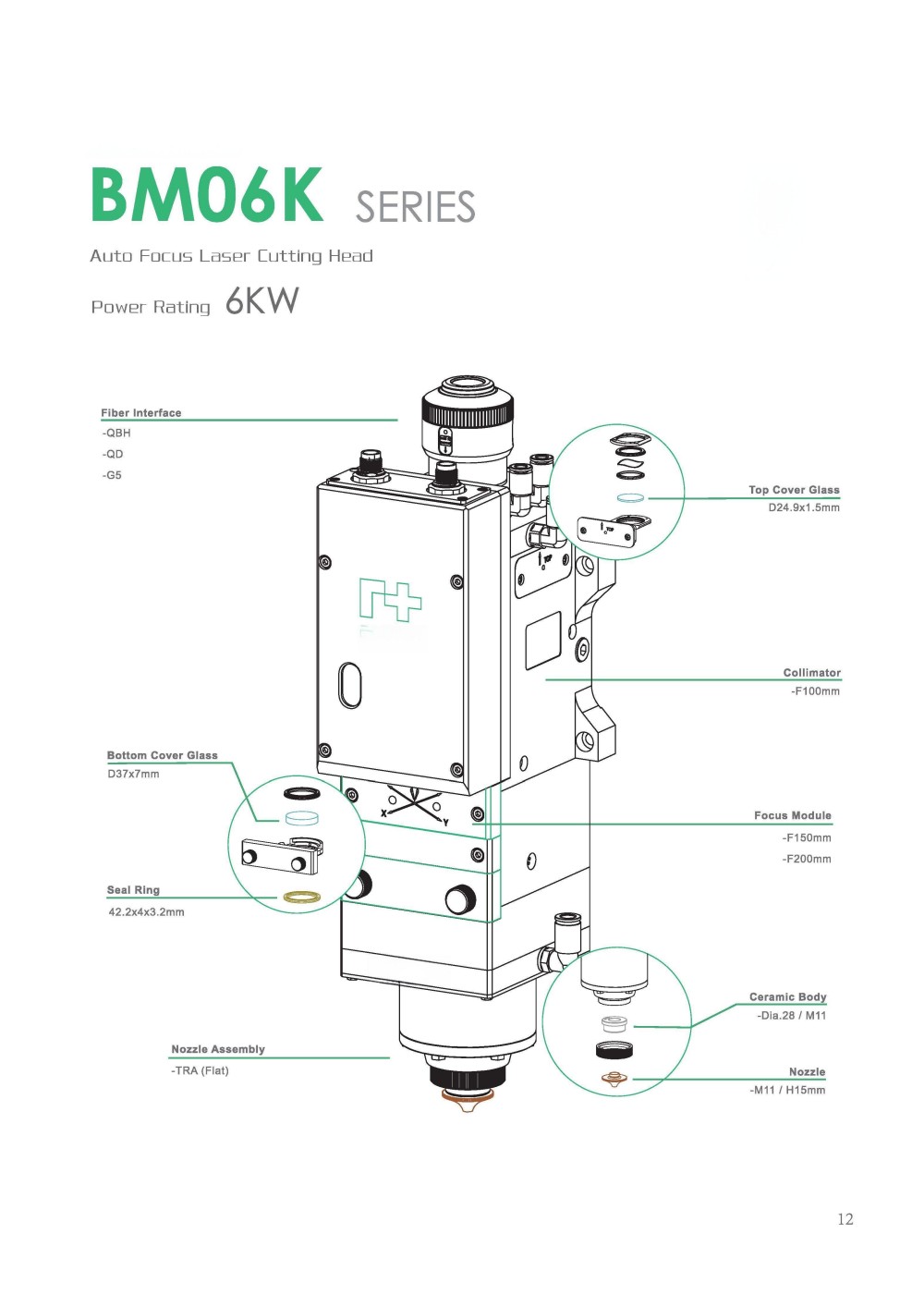

BM06K BT240S BM110 |
|
Fibre optic interface |
QBH, QD, G5 |
|
Through-hole diameter |
28mm |
|
Auto-focus |
- Range: 17mm~+17mm（F150mm）32mm~+32mm（F200mm） - Speed: 200mm/s - Acceleration: ≤10m/s² - Accuracy: 0.01mm |
|
Nozzle specifications |
single-layer, double-layer, non-standard |
|
Nozzle aperture |
0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm |
|
Auxiliary gas pressure |
≤ 30 bar |
All our machines are professionally packaged in fumigated wooden crates with foam padding for international shipping. We support FOB, CIF and DDP terms via sea, air or rail freight.
Our sales engineer will reply within 12 hours with a detailed quotation and shipping cost.
