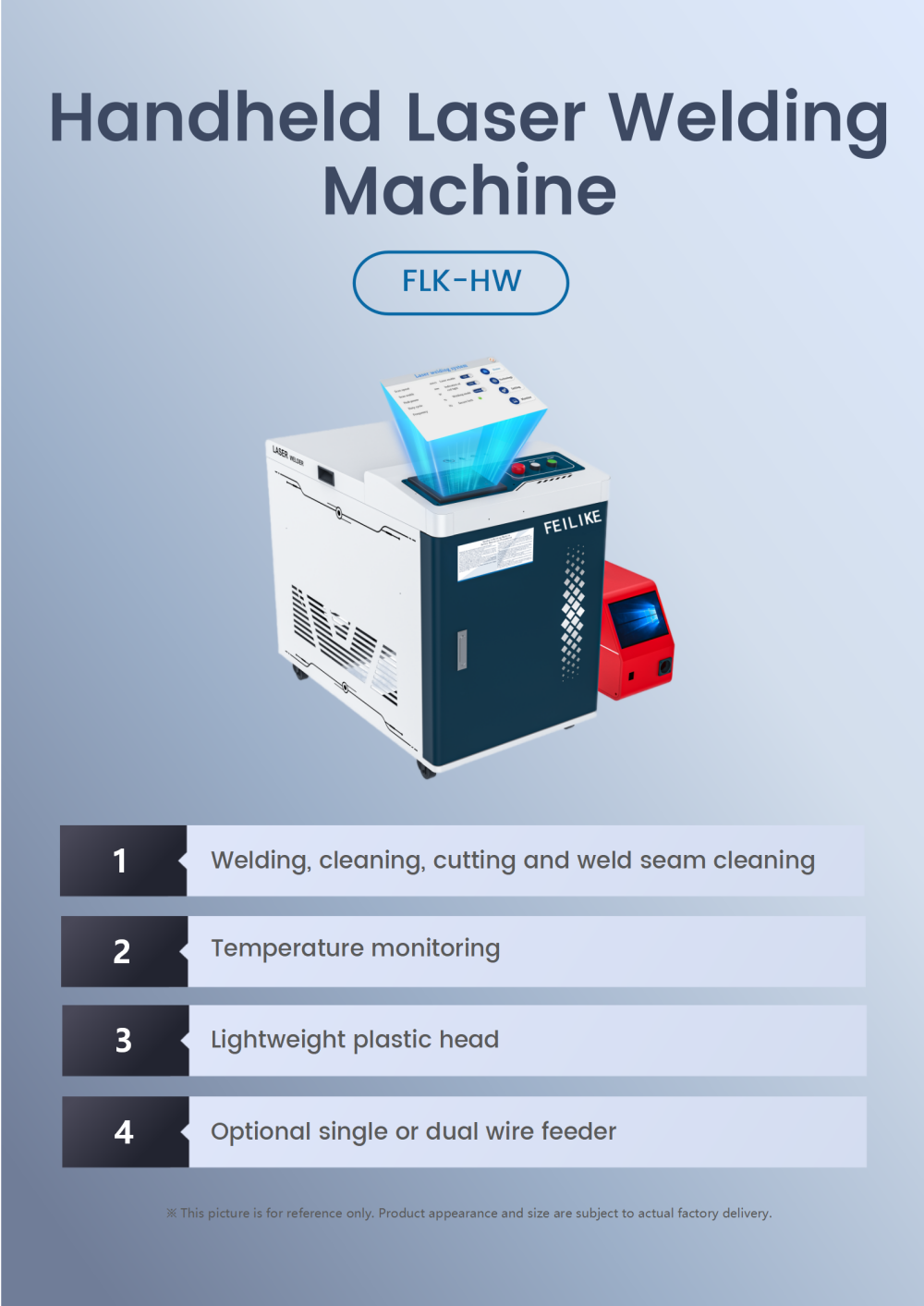

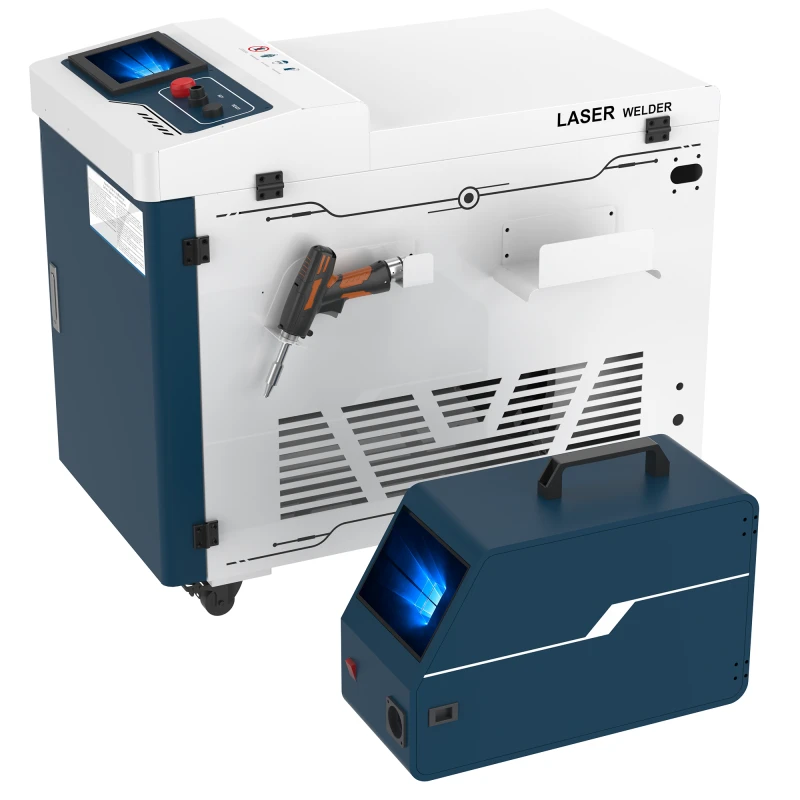

FEILIKE Easy-to-operate 4-in-1 Laser Welding Cutting Cleaning High-precision Handheld Fiber Laser Welding Machine
Laser Welding Machine

FEILIKE Easy-to-operate 4-in-1 Laser Welding Cutting Cleaning High-precision Handheld Fiber Laser Welding Machine

FLK-HW

Key Specifications

  • Welding gun weight≤0.7KG
  • Total power cable length5m
  • Scan width - welding0-8mm
  • LanguageChinese, Traditional Chinese, English, Korean, Russian, Japanese, etc.
  • Chinese, Traditional Chinese, English, Korean, Russian, Japanese, etc.1425X870X1080mm
  • ✓ Reply within 12 hours
  • ✓ Factory direct price
  • ✓ 18 years export experience
  • ✓ 12-month warranty

1.High-Precision Welding: Delivers precise welds with 3000W power.

2.Easy Operation: User-friendly design ensures quick learning curve.

3.Metal Compatibility: Works effectively on metal surfaces up to 10-30 mm/s.

4.Continuous Mode: Ideal for continuous welding tasks.

5.1-Year Warranty: Peace of mind with extended warranty coverage.

6.Extremely Easy to Learn and Operate:An unskilled worker can be trained to produce perfect welds in just a few hours, eliminating the need for highly specialized and expensive welders.

7.Reduced Operational Costs:With no need for post-weld grinding or polishing, and lower energy consumption compared to traditional methods, you save significantly on labor, time, and electricity.

8.High Flexibility and Versatility:Effortlessly weld a wide variety of metals including stainless steel, carbon steel, aluminum, and even dissimilar metals. The portable design allows for use in the workshop or on-site.

Technical Specifications

Laser power

FLK1500HW

FLK2000HW

FLK3000HW

Wire diameter

Standard 0.8-1.6mm

Standard 0.8-2mm

Weld splicing

Self-fusion welding: 15% of the plate thickness and 0.5mm

Single-wire welding: 1.2mm

Double-wire welding: 2mm

Net weight

156KG

176KG

196KG

Gross weight

180KG

190KG

260KG

Dimensions

(without wire feeder)

968X660X826mm

980X720X867mm

Packing size

1425X870X1080mm

Welding thickness

4mm

5mm

7mm

Total length of welding gun wire

10m (5m wire tube)

Welding gun weight

0.7KG

Total power cable length

5m

Total power

9kW

12kW

15kW

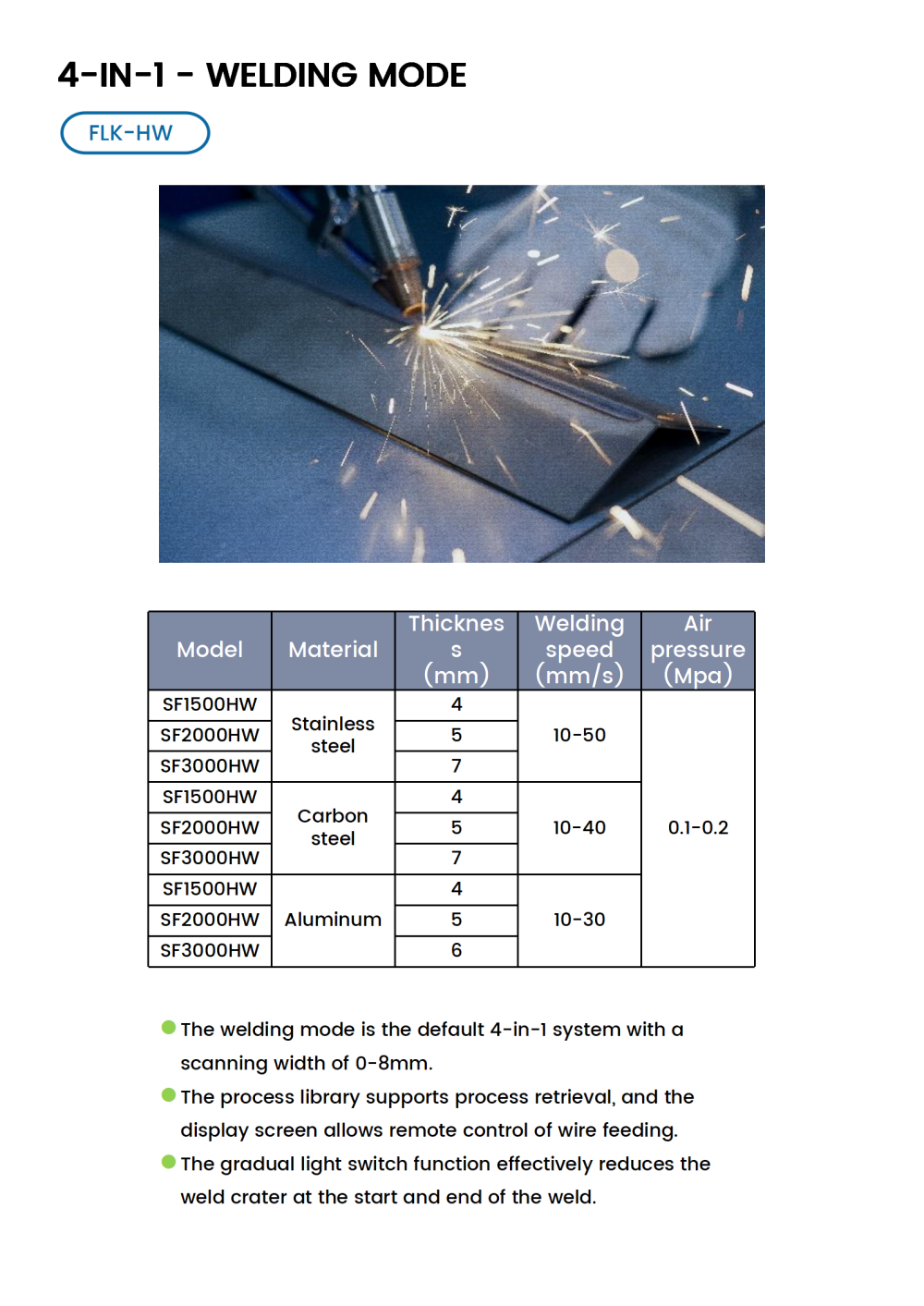

Scan width - welding

0-8mm

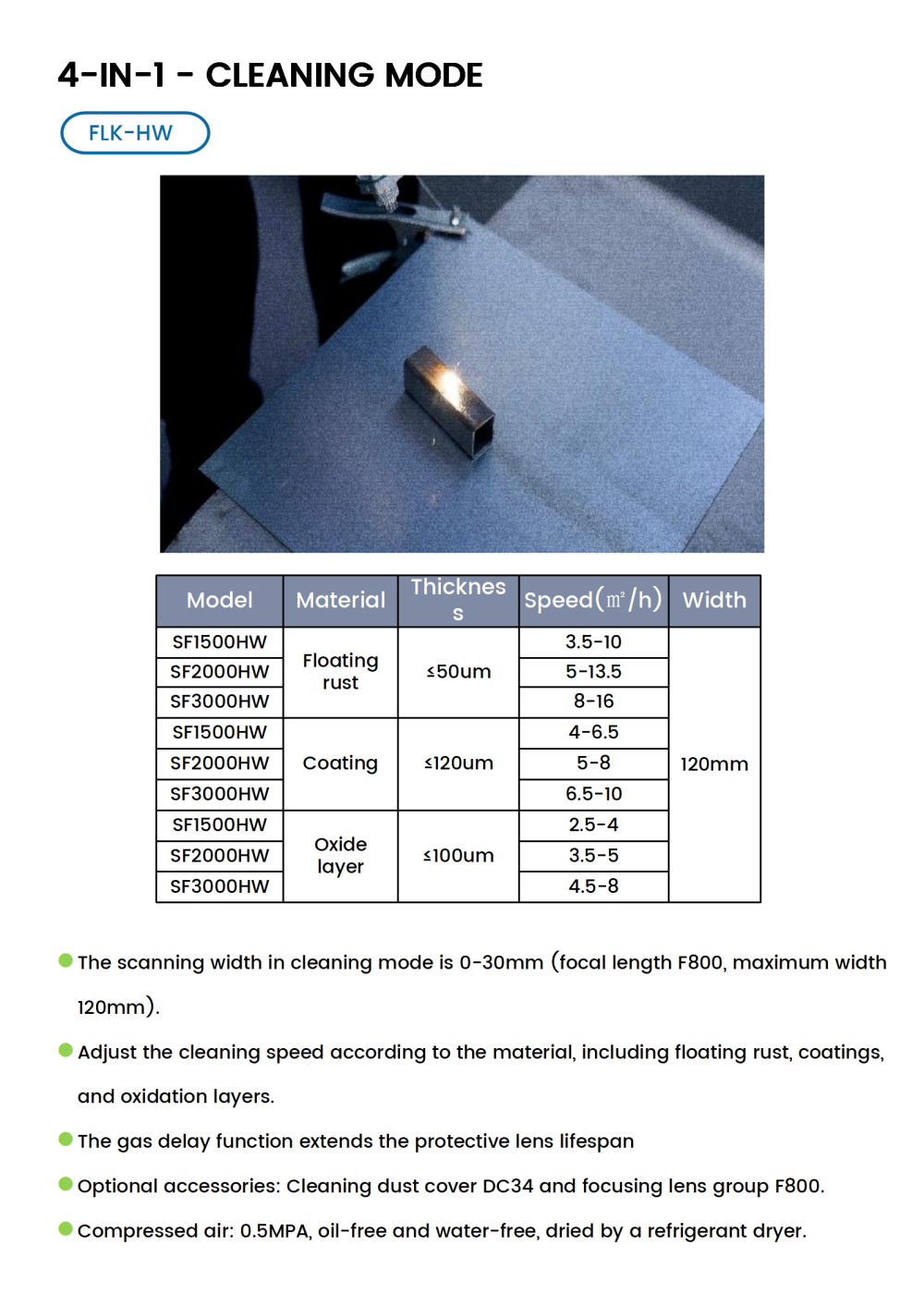

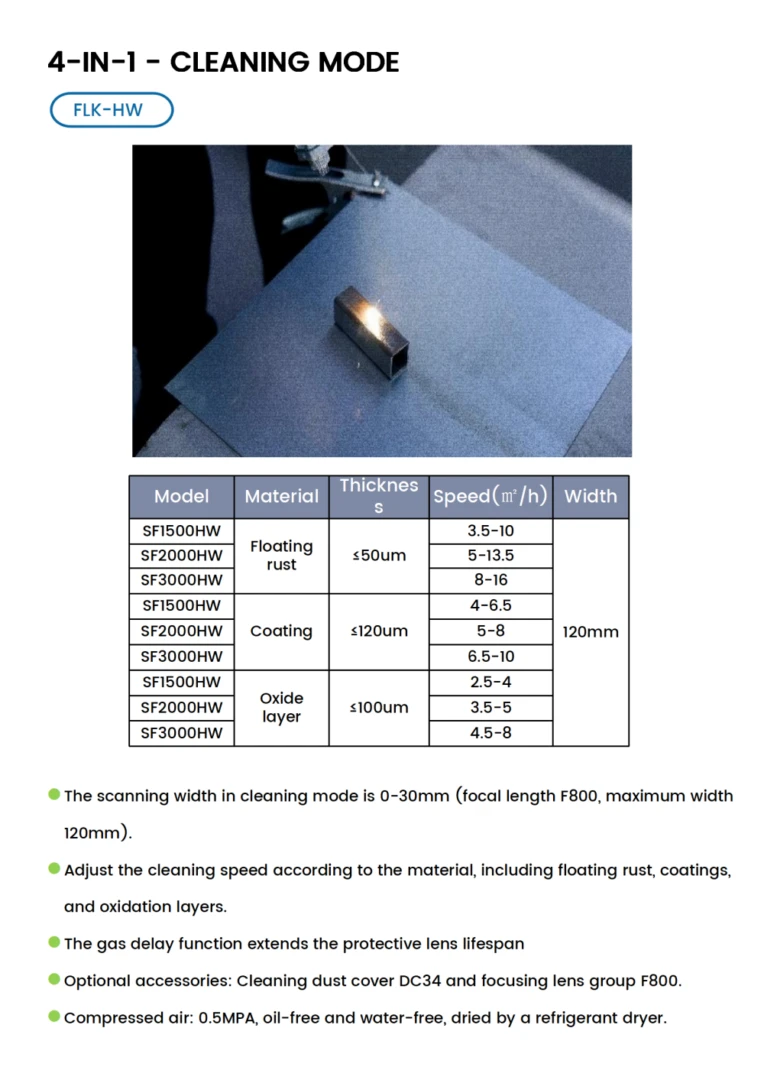

Scan width - cleaning

F150-30mm

F400-60mm

F800-120mm

Language

Chinese, Traditional Chinese, English, Korean, Russian, Japanese, etc.

Voltage/frequency

Standard: Single-phase 220V 50/60Hz for 2000W Standard: Three-phase 380V 50/60Hz for 3000W

Packaging & Shipping

All our machines are professionally packaged in fumigated wooden crates with foam padding for international shipping. We support FOB, CIF and DDP terms via sea, air or rail freight.

  • Production Lead Time: 7–15 working days for standard models · 25–40 days for customized configurations
  • Shipping: Worldwide via sea / air / rail · door-to-door available
  • Documents: Full export documentation including CE certificate, Invoice, Packing List, Bill of Lading
  • Warranty: 12 months standard (extendable to 24 months on key models)
