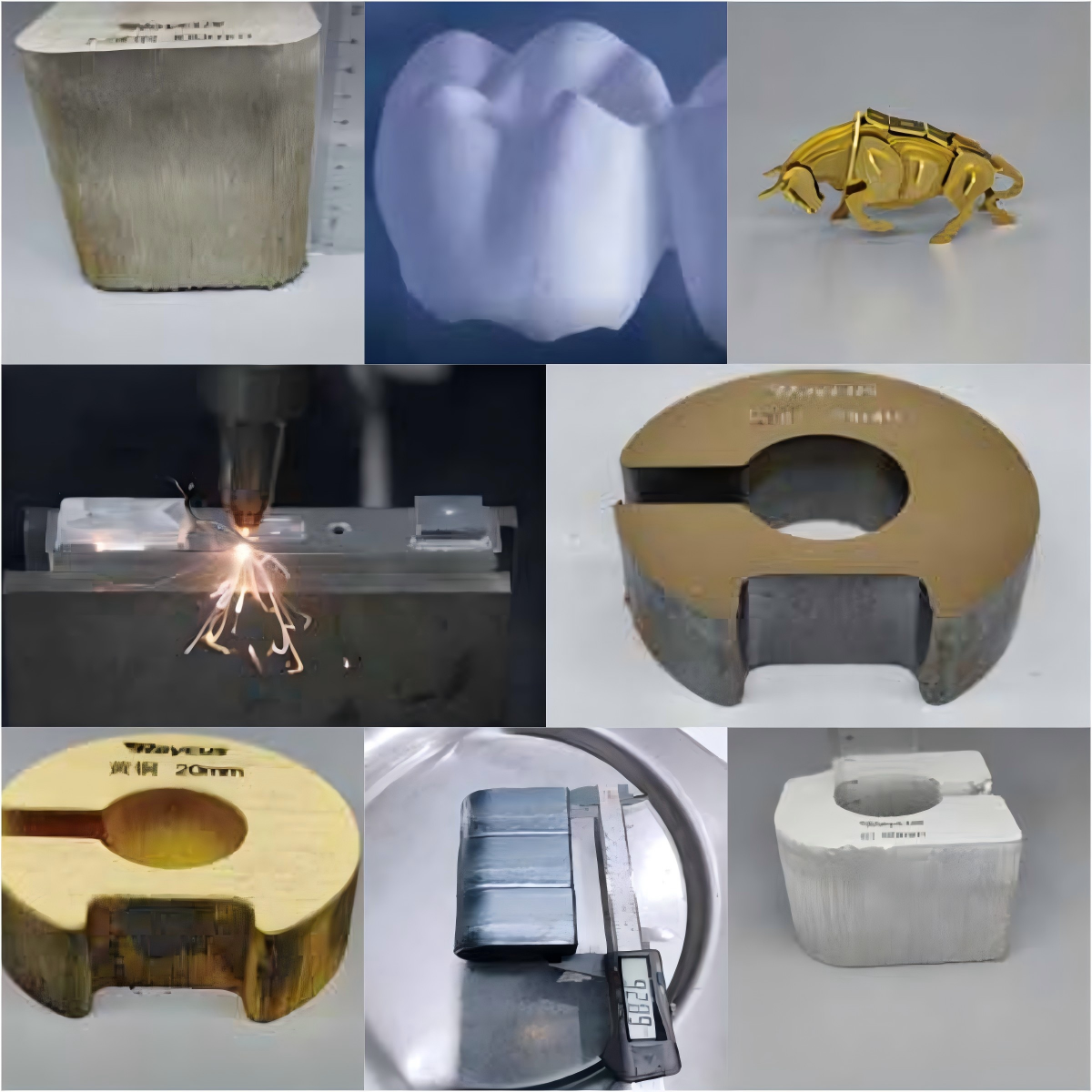

1.Typical Applications,Precision Cutting,Metal Welding,Sheet Metal,Piercing,Metal Carving,Surface Treatment
2.Technical characteristics,Lightweight,High efficiency,Maintenance,free operation,High beam quality,High integration,Portable
3.Characteristic,High Electro-optical Conversion Efficiency,Resistance To High Reflection,High Beam Quality,High Safety Performance,Sheet Cutting Efficiency,Customzed Output Fiber Length,Maintenance-free Operation
|

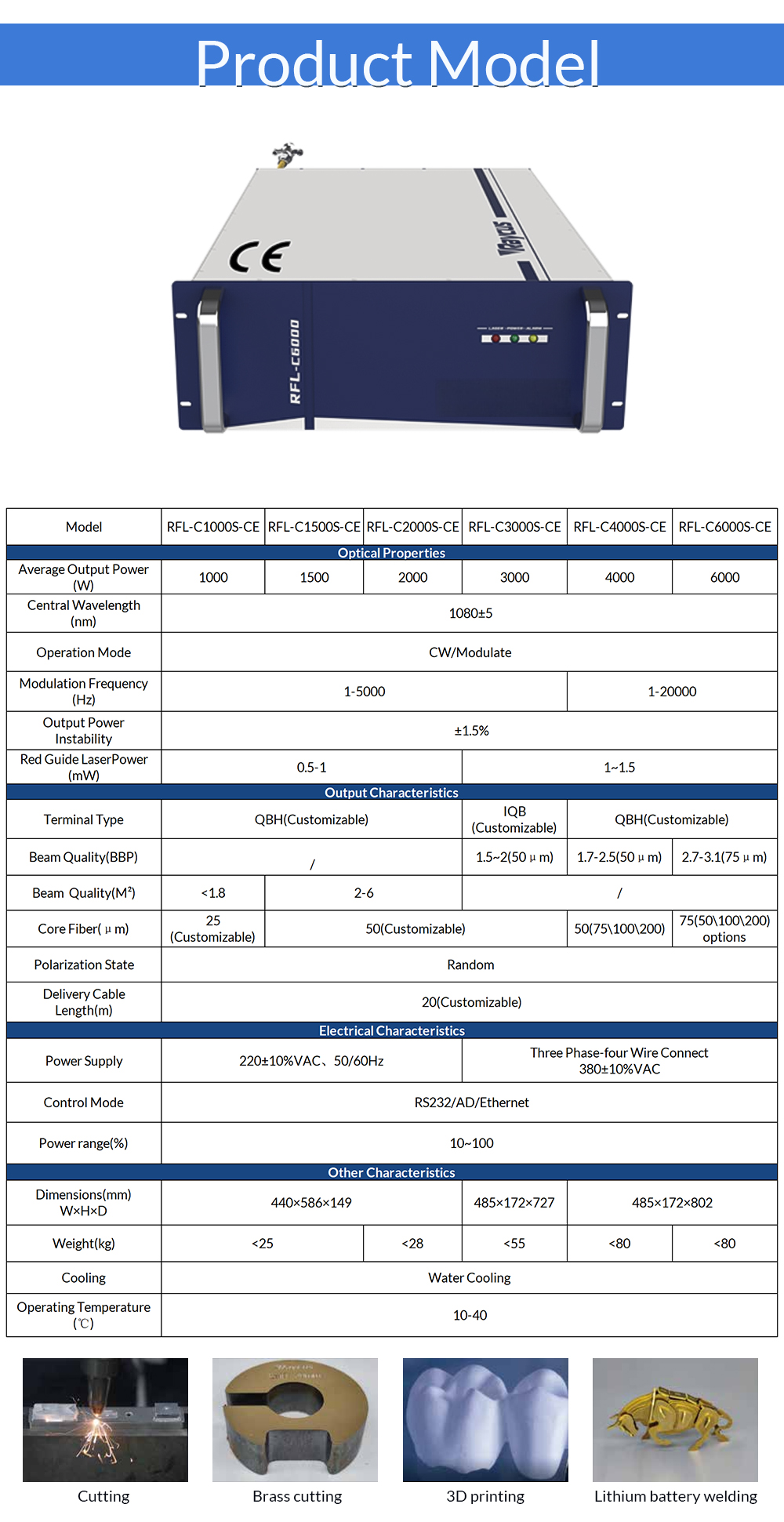

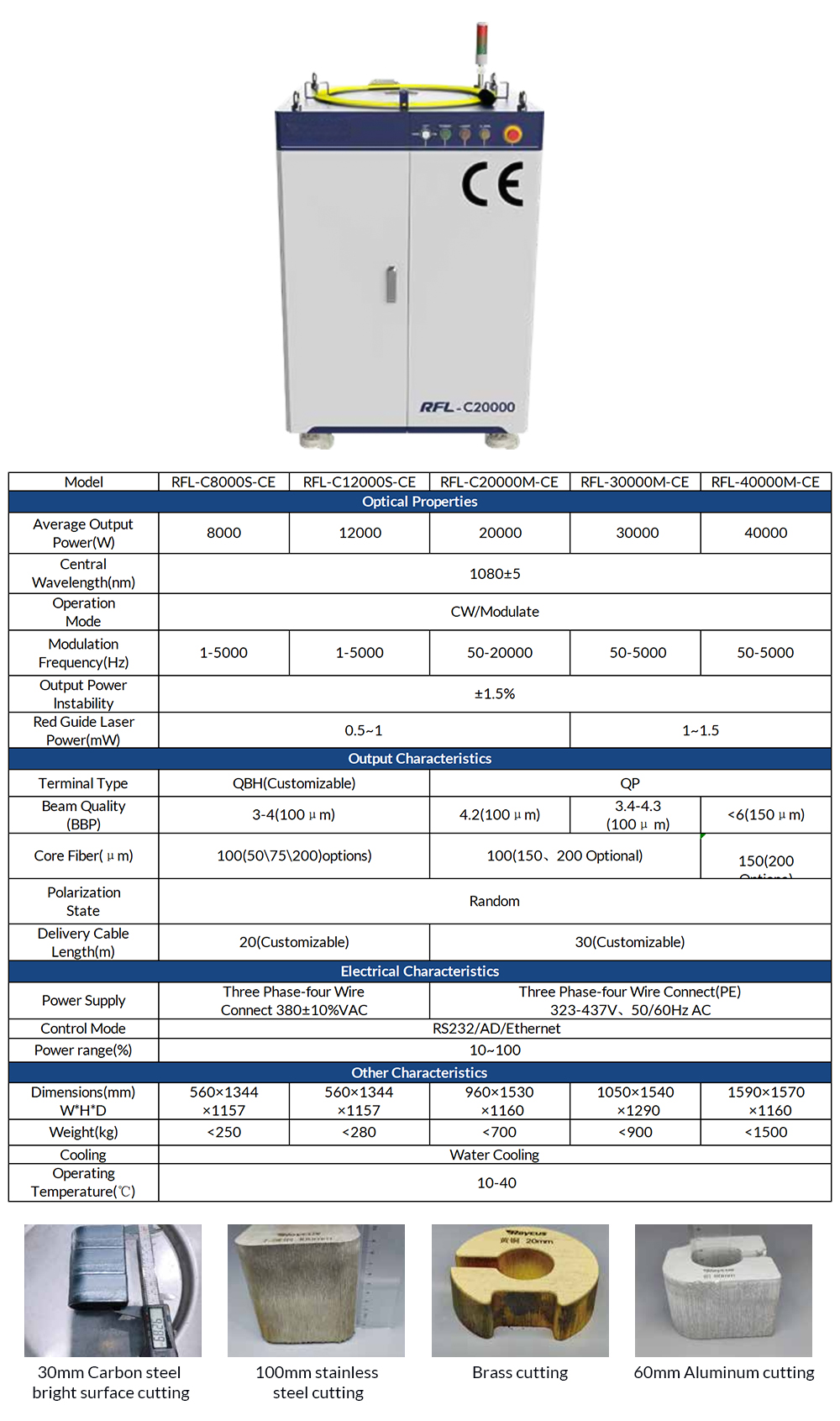

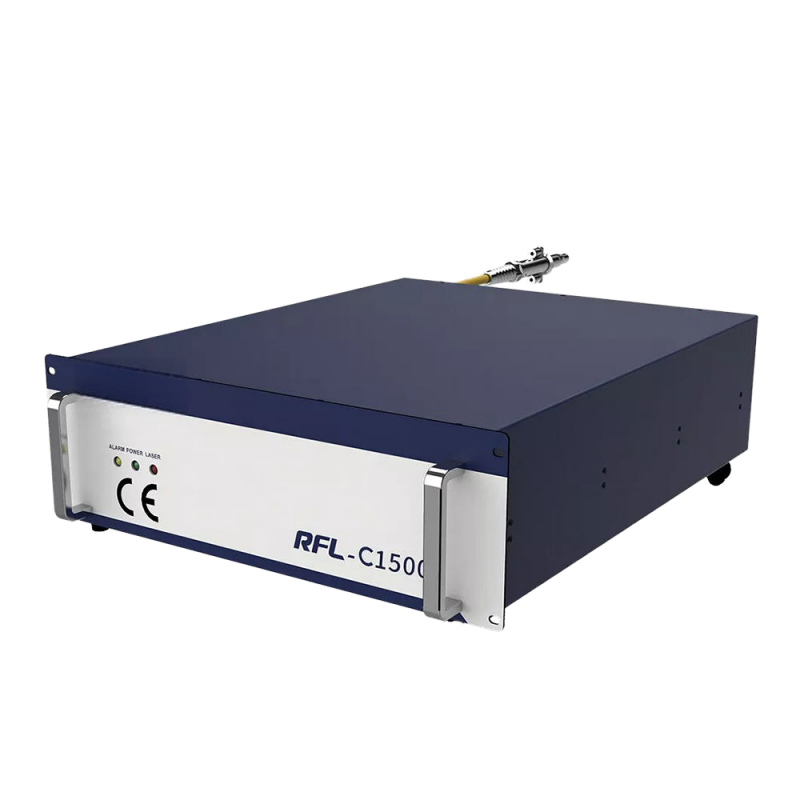

Model |
RFL-C020H-CE |
RFL-C025H-CE |

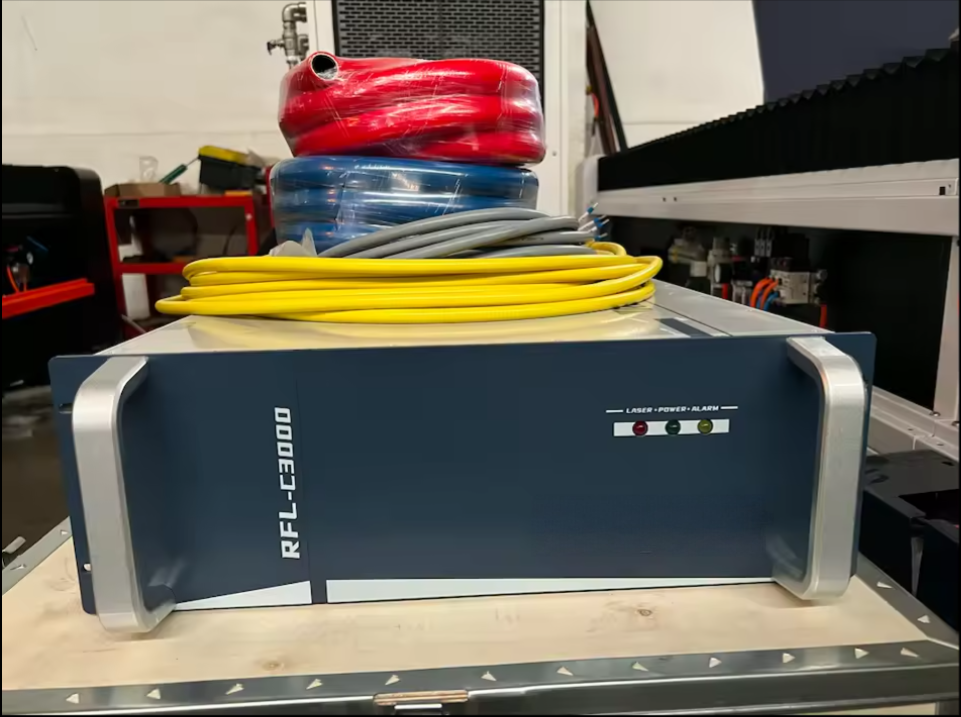

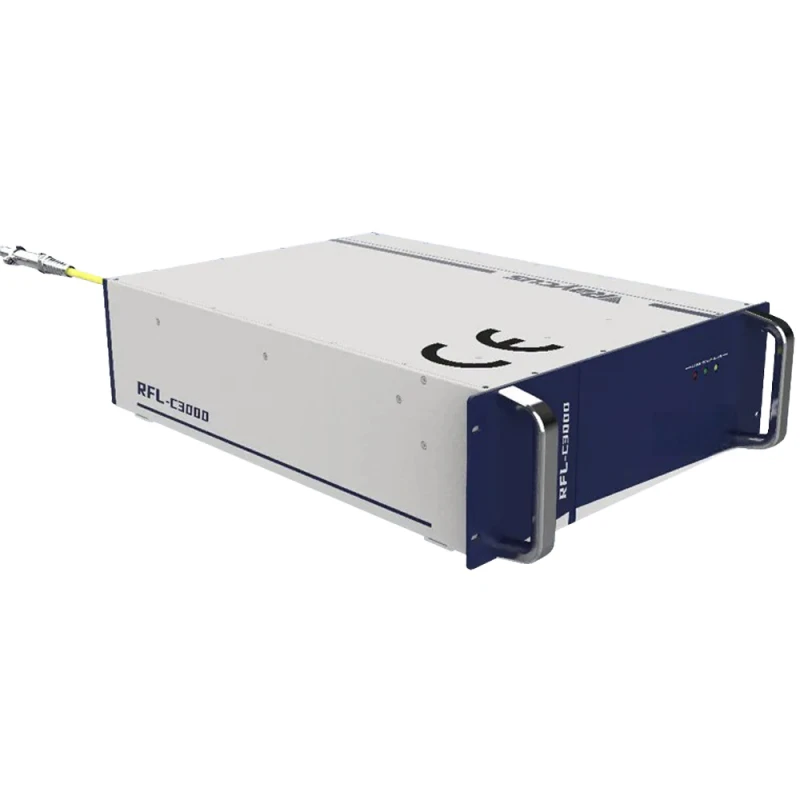

RFL-C3000S-CE |
RFL-C6000S-CE |

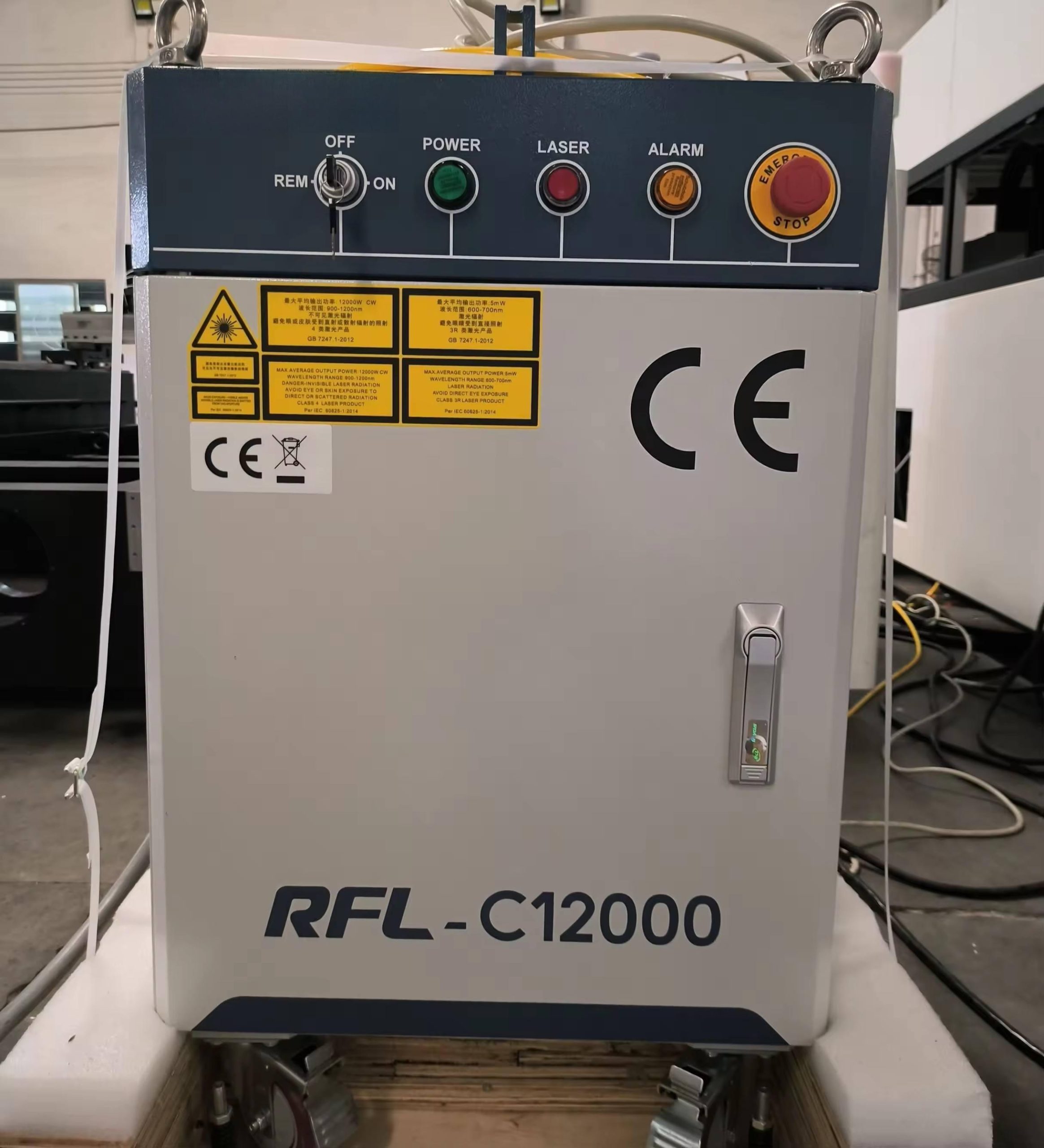

RFL-C12000S-CE |
|
|
Average Output Power (W) |
1500 |
2000 |
3000 |
6000 |
12000 |
|
|
Central Wavelength (nm) |
1080±5 |
|||||
|
Operation Mode |
CW/Modulate |
|||||
|
Modulation Frequency(Hz) |
1-5000 |
1-20000 |
||||
|
Output Power Instability |
±1.5% |
|||||
|
Red Guide LaserPower (mW) |
0.5-1 |
1-1.5 |
||||
|
Terminal Type |
QBH(Customizable) |
IQB (Customizable) |
QBH(Customizable) |
|||
|
BeamQuality (BBP) |
/ |
1.5~2(50μm) |
2.7-3.1(75μm) |
3-4(100μm) |
||
|
Delivery Cable Length(m) |
20(Customizable) |
|||||
|
Power Supply |
220±10%VAC、50/60Hz |
Three Phase-four Wire Connect 380±10%VAC |
||||
|
Control Mode |
RS232/AD/Ethernet |
|||||
|
Power range(%) |
10~100 |
|||||
|
Dimensions(mm) W×H×D |
440×586×149 |
485×172×727 |
485×172×802 |
560x1344x 1157 |
||
|
Weight(kg) |
<25 |
<28 |
<55 |
<80 |
<80 |
|
|

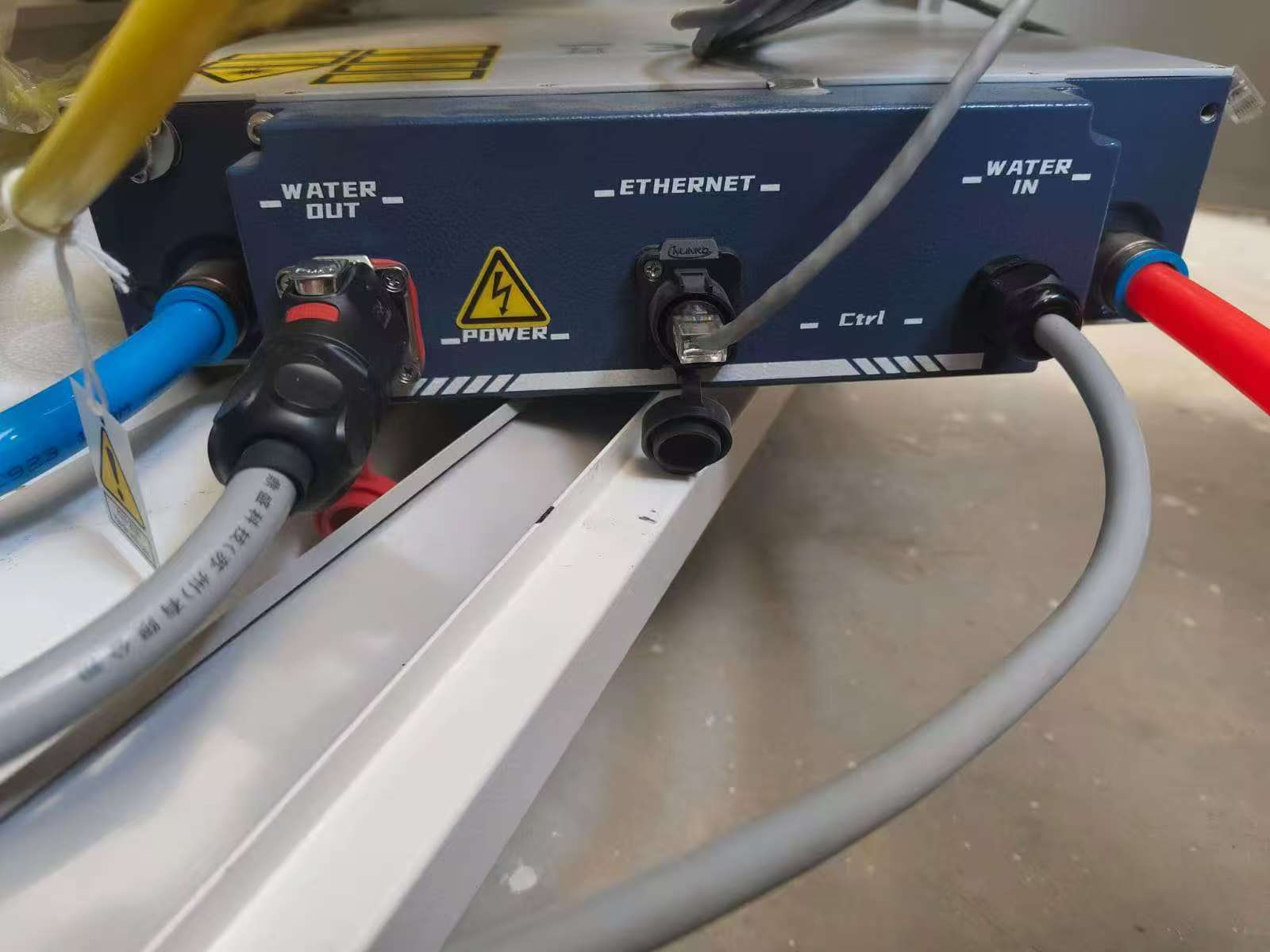

Cooling |
Water Cooling |
|||||
|
Operating Temperature (C) |
10-40 |
|||||
All our machines are professionally packaged in fumigated wooden crates with foam padding for international shipping. We support FOB, CIF and DDP terms via sea, air or rail freight.
Our sales engineer will reply within 12 hours with a detailed quotation and shipping cost.
