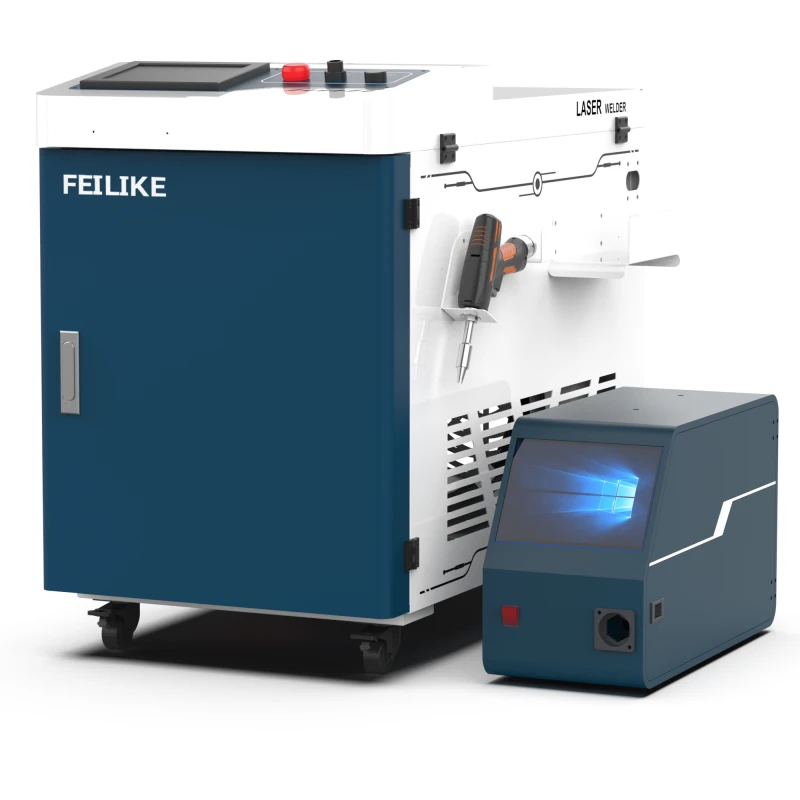

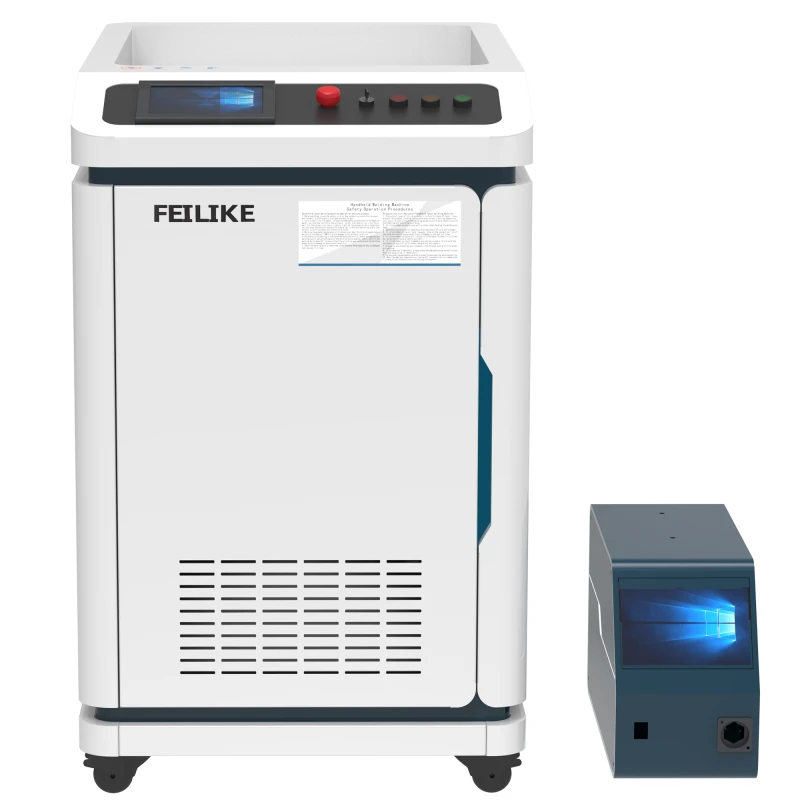

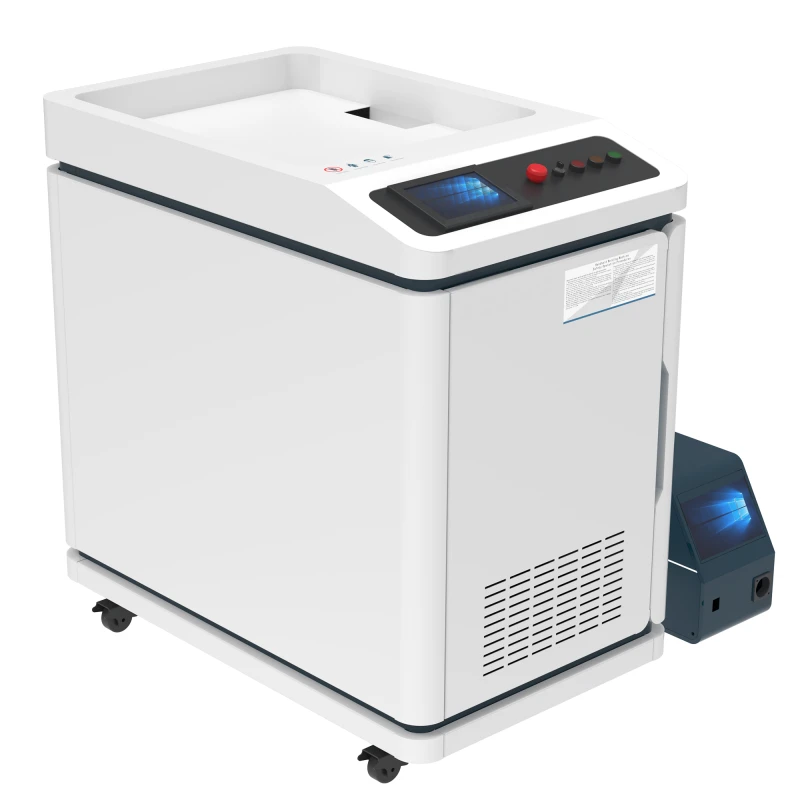

4 in 1 1500w 2000w 3000w Handheld Multi-functional Automatic Fiber Laser Metal Welding Machine
Laser Welding Machine

4 in 1 1500w 2000w 3000w Handheld Multi-functional Automatic Fiber Laser Metal Welding Machine

FLK-HWM

Key Specifications

  • Welding gun weight0.75KG
  • Scan width - welding0—8mm
  • Weld splicingSelf-fusion welding: ≤15% of the plate thickness and ≤0.5mm Single-wire welding: ≤1.2mm Double-wire welding: ≤2mm
  • Total length of welding gun wire10m (wire tube length is 5 meters)
  • LanguageChinese, English, Korean, Russian, Japanese, German, French, etc.
  • ✓ Reply within 12 hours
  • ✓ Factory direct price
  • ✓ 18 years export experience
  • ✓ 12-month warranty

1.High Power Output: 3000W, suitable for heavy-duty welding tasks.

2.User-Friendly Operation: Easy-to-use interface for quick setup.

3.Welding Speed Range: 10-30 mm/s, adaptable to various welding needs.

4.Compact Design: Compact size for convenient storage and portability.

5.High Precision: Ensures high-quality welds for professional results.

6.Extremely Easy to Learn and Operate:An unskilled worker can be trained to produce perfect welds in just a few hours, eliminating the need for highly specialized and expensive welders.

7.Reduced Operational Costs:With no need for post-weld grinding or polishing, and lower energy consumption compared to traditional methods, you save significantly on labor, time, and electricity.

8.High Flexibility and Versatility:Effortlessly weld a wide variety of metals including stainless steel, carbon steel, aluminum, and even dissimilar metals. The portable design allows for use in the workshop or on-site.

Technical Specifications

Laser power

1500W

2000W

3000W

Wire diameter

Standard 0.8-1.6mm

Standard 0.8-2mm

Weld splicing

Self-fusion welding: ≤15% of the plate thickness and ≤0.5mm

Single-wire welding: ≤1.2mm

Double-wire welding: ≤2mm

Net weight

220KG

265KG

Gross weight

270KG

350KG

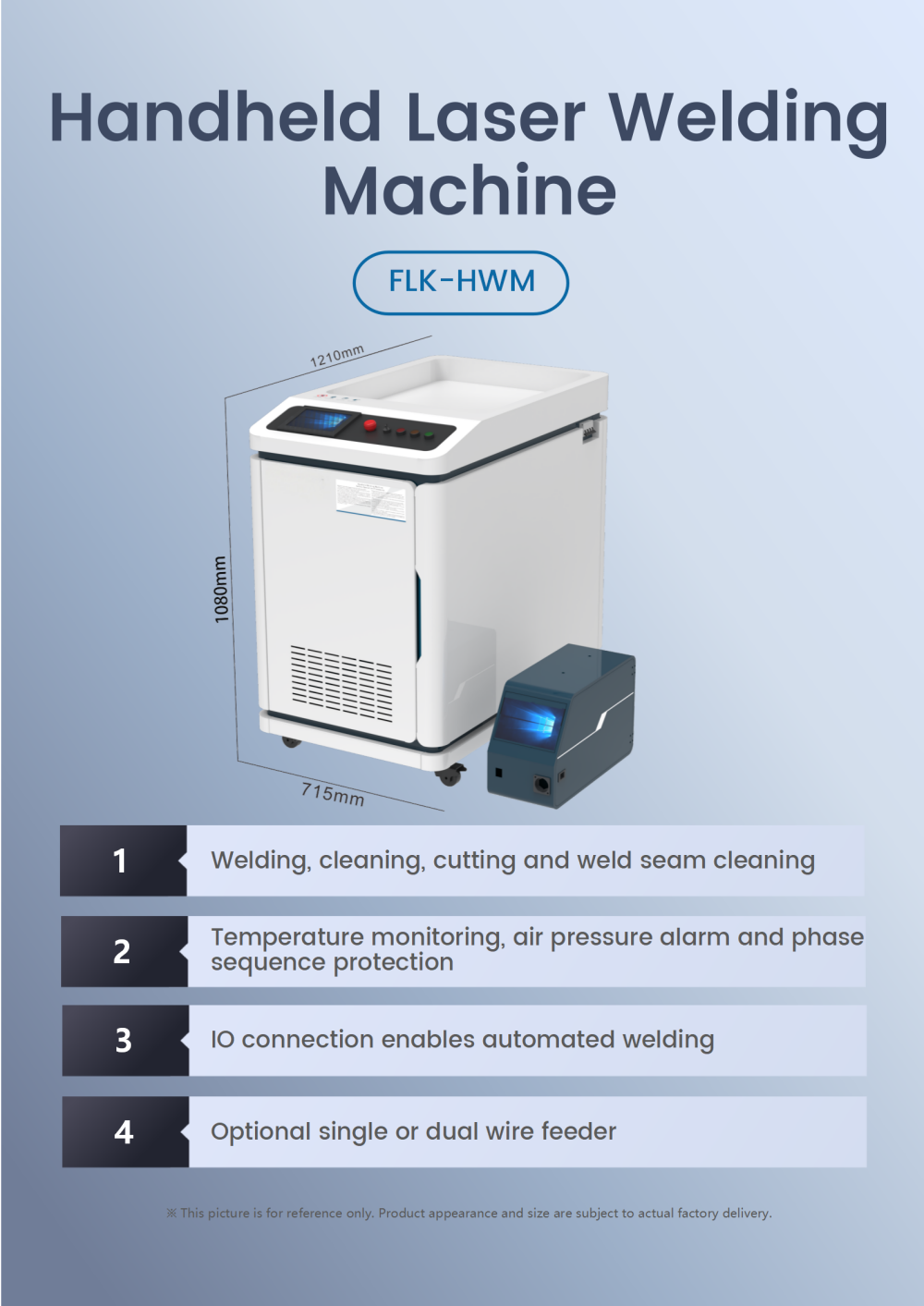

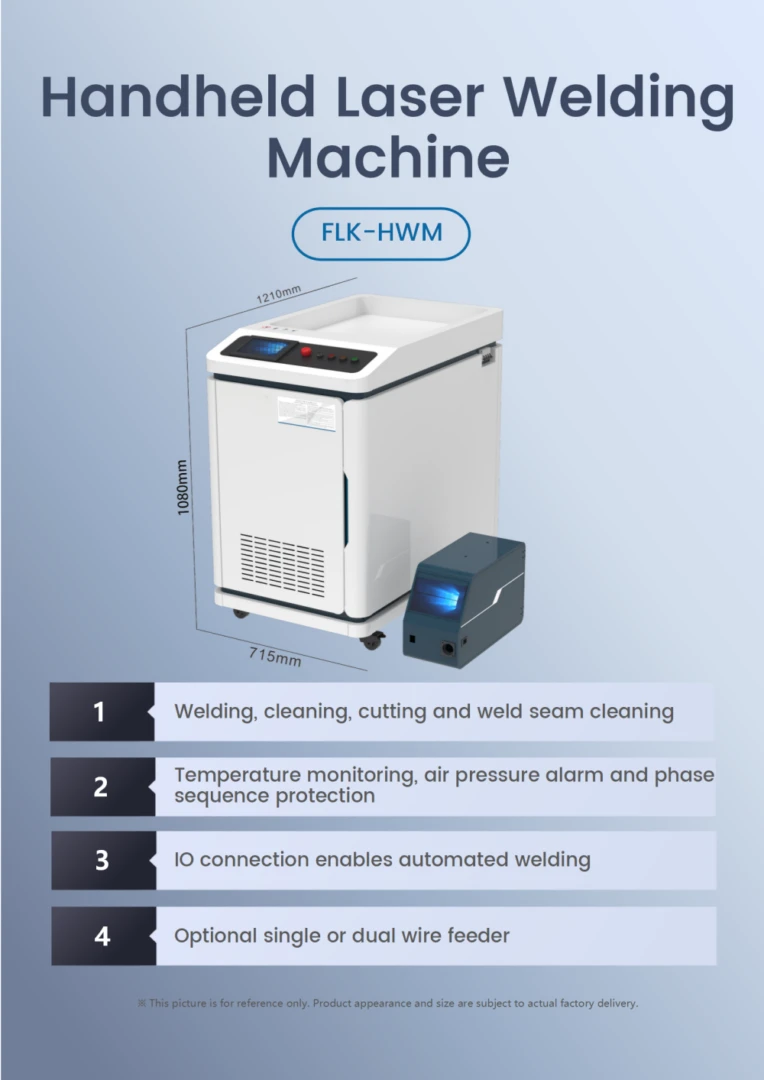

Dimensions

954X715X980mm

1210X715X1080mm

Packing size

1400X870X1265mm

1656X870X1265mm

Welding thickness

≤4mm

≤5mm

≤7mm

Total length of welding gun wire

10m (wire tube length is 5 meters)

Welding gun weight

0.75KG

Total power

9KW

12KW

15KW

Scan width - welding

0—8mm

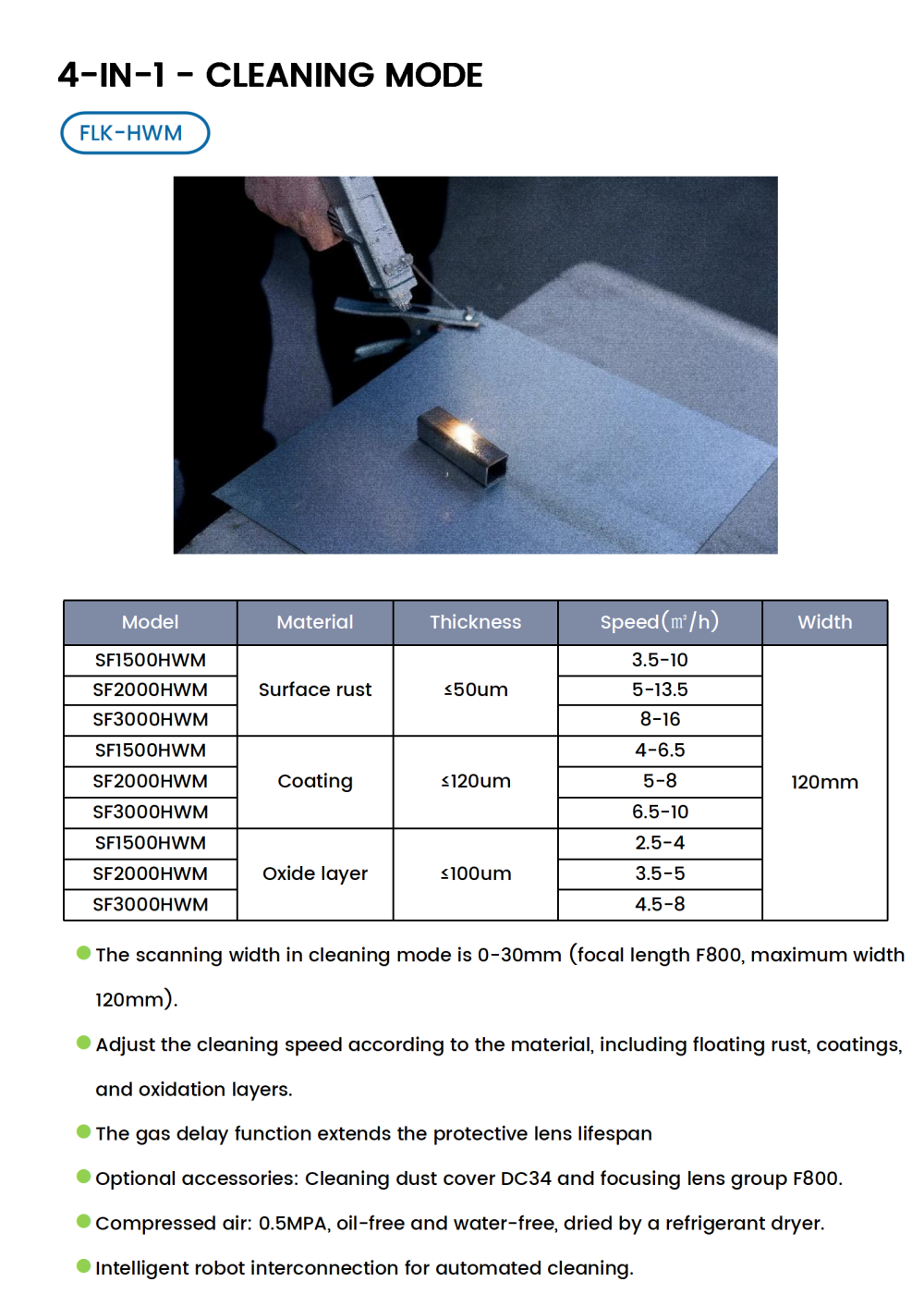

Scan width - cleaning

F150-0~30mm

F400-0~60mm

F800-0~120mm

Language

Chinese, English, Korean, Russian, Japanese, German, French, etc.

Voltage/frequency

Standard three-phase 380V 50/60HZ

Under 2000W, single-phase 220V 50/60HZ is optional

Packaging & Shipping

All our machines are professionally packaged in fumigated wooden crates with foam padding for international shipping. We support FOB, CIF and DDP terms via sea, air or rail freight.

  • Production Lead Time: 7–15 working days for standard models · 25–40 days for customized configurations
  • Shipping: Worldwide via sea / air / rail · door-to-door available
  • Documents: Full export documentation including CE certificate, Invoice, Packing List, Bill of Lading
  • Warranty: 12 months standard (extendable to 24 months on key models)
