لرأس القطع بالليزر الذكي بالليزر الليفي الذكي عالي الدقة BT240S BM240S BM110 BM110 BM111 BM111E BM04K BD04K BM04K BM06K BS06K BS08K
الإكسسوارات وقطع الغيار

لرأس القطع بالليزر الذكي بالليزر الليفي الذكي عالي الدقة BT240S BM240S BM110 BM110 BM111 BM111E BM04K BD04K BM04K BM06K BS06K BS08K

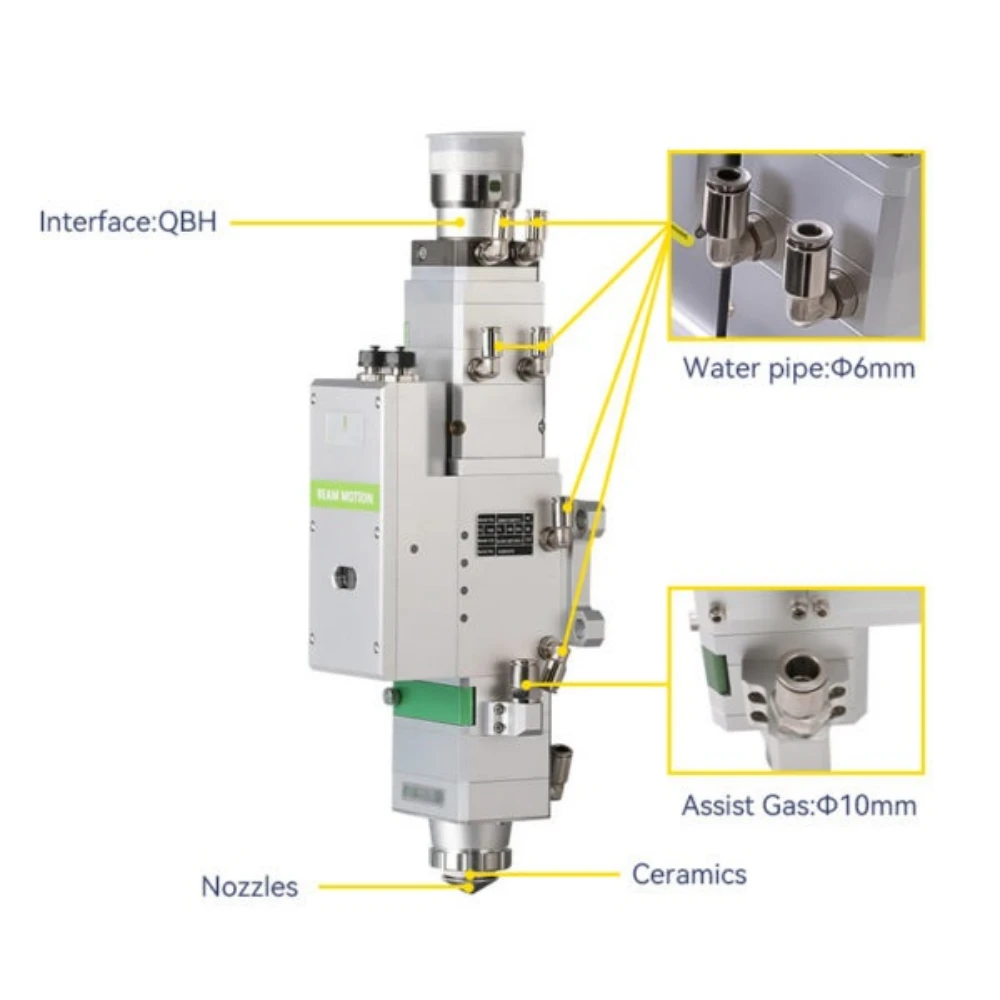

رأس القطع JQ

المواصفات الرئيسية

  • الطرازBM06K BT240S BM110
  • Fibre optic interfaceQBH, QD, G5
  • Through-hole diameter28mm
  • Nozzle specificationssingle-layer, double-layer, non-standard
  • Auxiliary gas pressure≤ 30 bar
  • ✓ الرد خلال 12 ساعة
  • ✓ سعر المصنع مباشرة
  • ✓ 18 عامًا من الخبرة في مجال التصدير
  • ✓ ضمان لمدة 12 شهرًا

1.Our cutting heads are designed with excellent compatibility and can be integrated with most mainstream fiber laser sources on the market, including brands like IPG, Raycus, Maxphotonics, and others. Please provide the brand and model of your laser source, and we will confirm the specific compatibility and any necessary adapters.

2.Autofocus: Automatically adjusts the focus position based on pre-set parameters, which is significantly faster and more

accurate, especially when frequently switching between different material types and thicknesses. It reduces setup time and minimizes human error.

3.Our heads can cut reflective materials, but it requires careful parameter setup (e.g., correct gas, power, and

speed). For frequent or thick reflective material cutting, we recommend specific models with enhanced internal protection to prevent damage from back-reflection.

المواصفات الفنية

الطراز

BM06K BT240S BM110

Fibre optic interface

QBH, QD, G5

Through-hole diameter

28mm

Auto-focus

- Range: 17mm~+17mmF150mm32mm~+32mmF200mm

- Speed: 200mm/s

- Acceleration: 10m/s²

- Accuracy: 0.01mm

Nozzle specifications

single-layer, double-layer, non-standard

Nozzle aperture

0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm

Auxiliary gas pressure

30 bar

التعبئة والتغليف والشحن

يتم تغليف جميع ماكيناتنا بشكل احترافي في صناديق خشبية مدخنة مع حشوة رغوية للشحن الدولي. نحن ندعم شروط FOB و CIF و DDP عن طريق الشحن البحري أو الجوي أو بالسكك الحديدية.

  • مهلة الإنتاج: 7-15 يوم عمل للطرازات القياسية - 25-40 يومًا للتكوينات المخصصة
  • الشحن: في جميع أنحاء العالم عن طريق البحر/الجو/السكك الحديدية - من الباب إلى الباب متاح
  • المستندات: وثائق التصدير الكاملة بما في ذلك شهادة CE، والفاتورة، وقائمة التعبئة، وبوليصة الشحن
  • الضمان: 12 شهراً قياسياً (قابلة للتمديد إلى 24 شهراً في الطرازات الرئيسية)
