1.Bending system：Professional CNC system, graphic visualization programming, support two-bit drawing process programming; multi-axis concurrent linkage intelligent CNC system, using EtherCAT bus protocol, can support up to 64 axes.

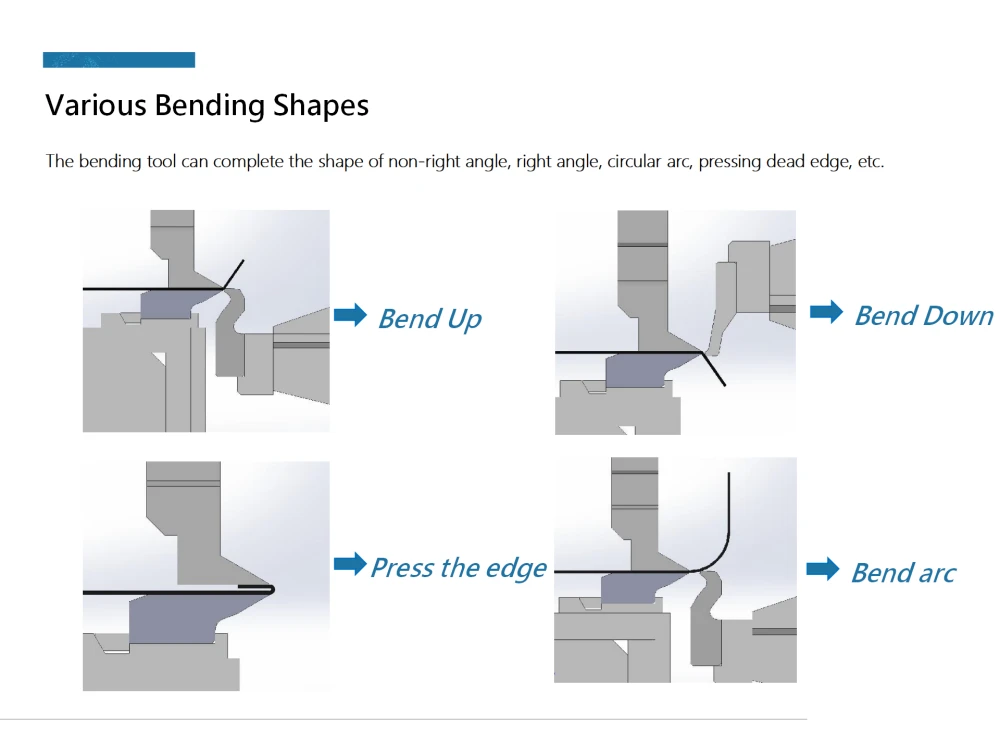

2.Bending knife:The life of the bending knife can reach one million times (thin sheet).High-strength 42Crmo material, after more than ten processing processes such as overall forging, quenching and tempering, high-frequency quenching, etc., makes the bending die more durable and more wear-resistant.
3.High Efficiency and Precision:The BDC series is a new generation of fully automatic multilateral bending center . The product not only saves a lot of manpower, but the bending speed is 3 times that of the CNC bending machine, reaching 0.5s/time.

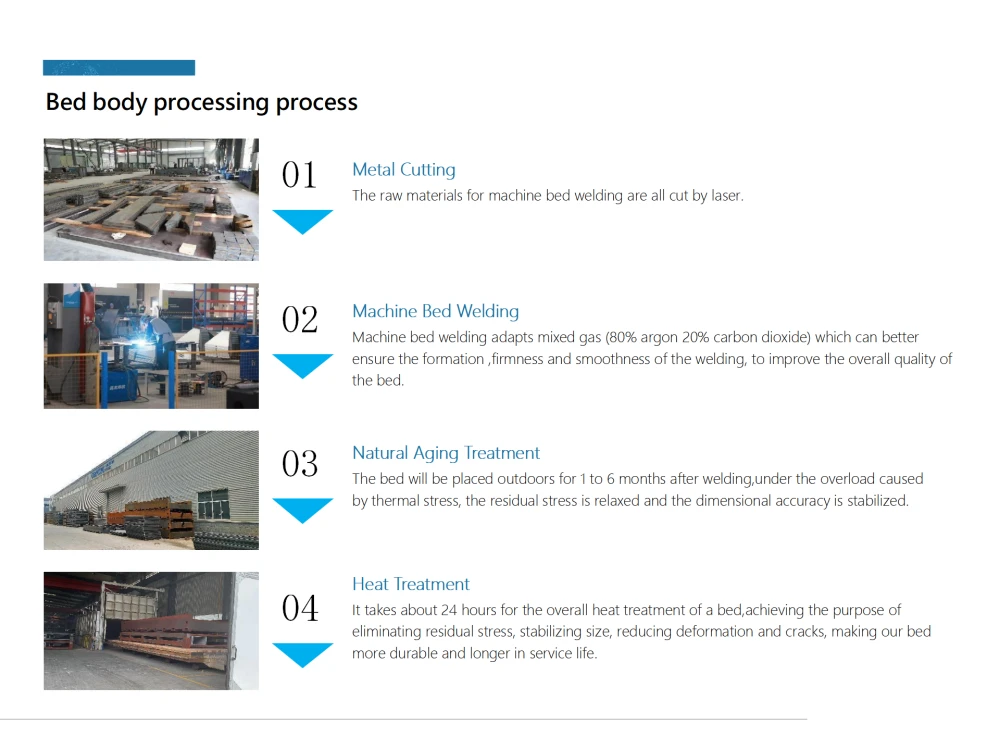

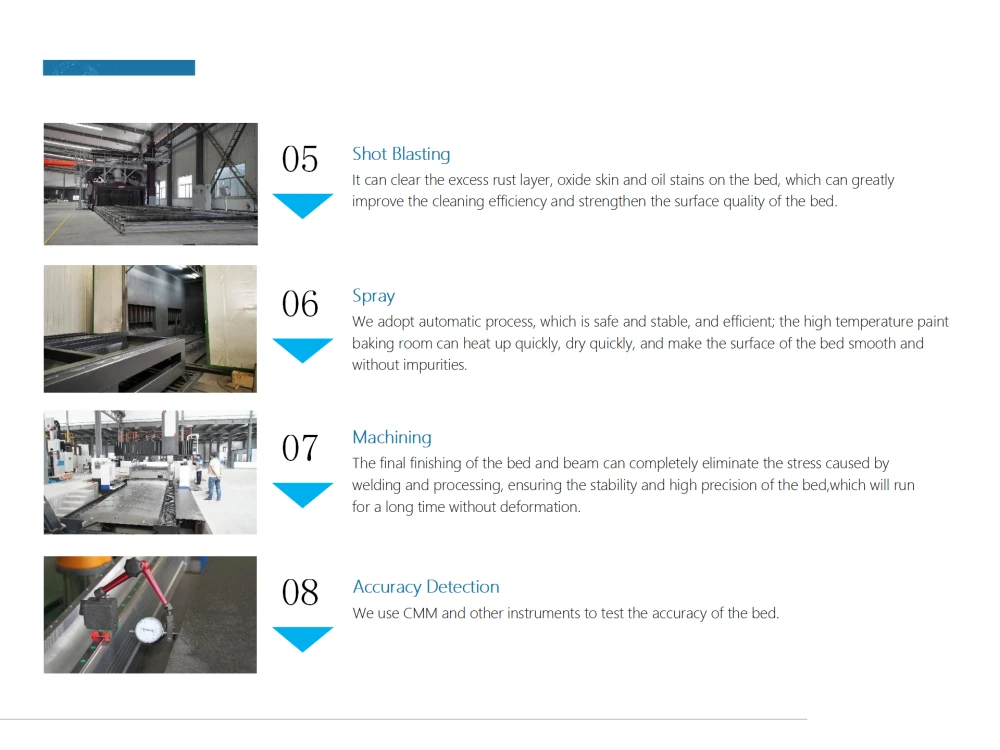

4.Higher Bending Accuracy:The machine body independently developed and designed has undergone accurate finite element force analysis, and adopts a stable triangular interconnection design. The key components are processed with 80mm steel plates to ensure stability under high tonnage impact force.
|
Item |
Parameters |
|
|
Maximale Biegelänge |
2000mm |
|
|
Maximale Biegebreite |
1250mm |
|
|
Maximale Biegehöhe |
200mm, 175mm with hinge knife (optional: 300mm, 275mm with hinge knife) |
|
|
Maximum thickness and bending angle (Standard tools) |
Steel, UTS 410 N/mm2 |
2.0mm (max) |
|
Stainless steel, UTS 660N/mm2 |
1.5mm (max) |
|
|
Aluminium, UTS 265 N/mm2 |
2.5mm (max) |
|
|
remarks：arc≤1mm；Flatten≤1mm |
||
|
Minimale Dicke |
0,35 mm |
|
|
Gas pressure |
0.6Mpa |
|
|

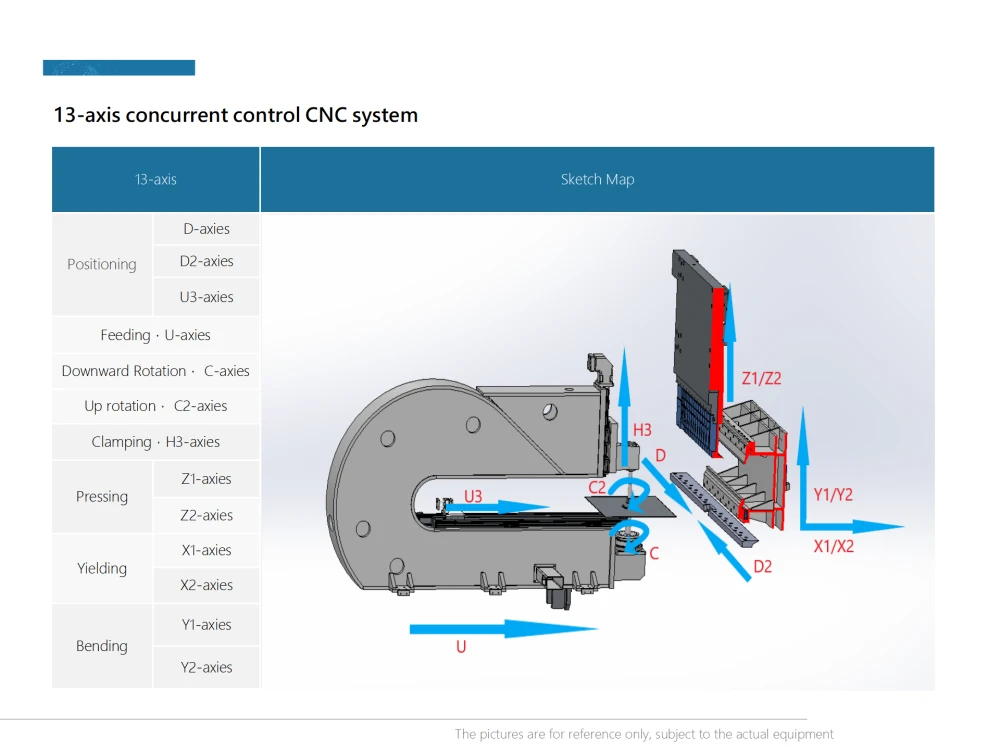

axis |
13 |
|
|
Fastest bend speed |
0.2S/bend |
|
|
Air consumption |
20NL/min |
|
|
Abmessungen |
Length |
5000mm |
|
Width |
2700mm |
|
|
Height |
2950mm |
|
|
Gewicht |
17000kg |
|
Alle unsere Maschinen werden professionell in begasten Holzkisten mit Schaumstoffpolsterung für den internationalen Versand verpackt. Wir unterstützen FOB-, CIF- und DDP-Bedingungen per See-, Luft- oder Bahnfracht.
Unser Vertriebsingenieur wird Ihnen innerhalb von 12 Stunden ein detailliertes Angebot und die Versandkosten mitteilen.
