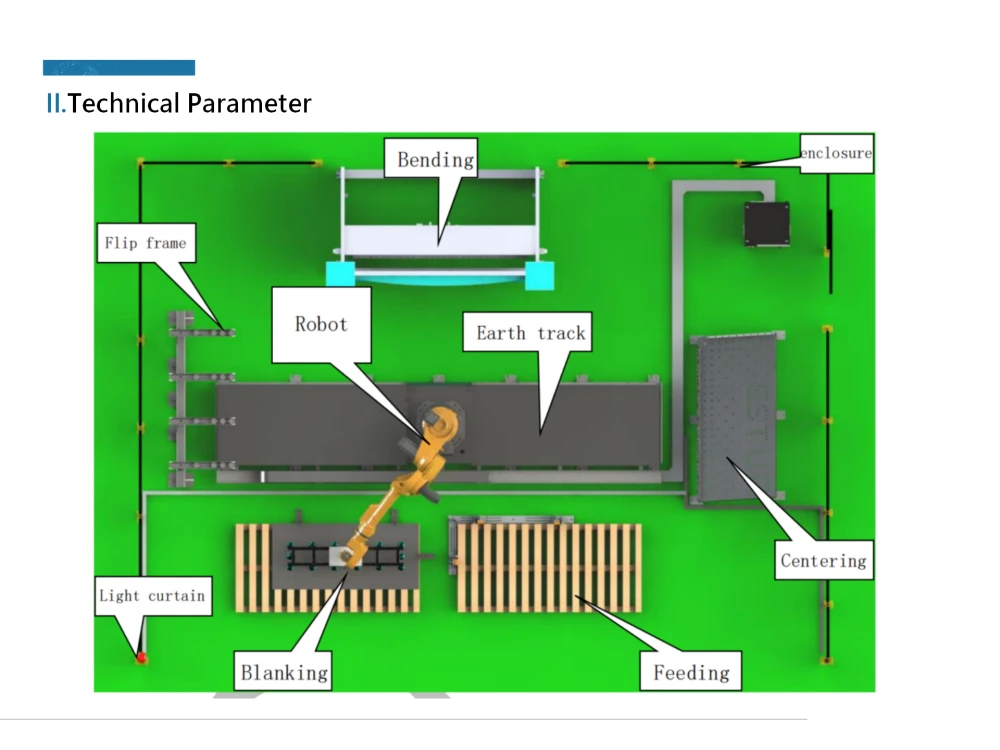

Machine à plier les panneaux à l'aide d'une presse plieuse CNC Nouvelle machine à plier les tôles d'acier avec unité robotique automatisée

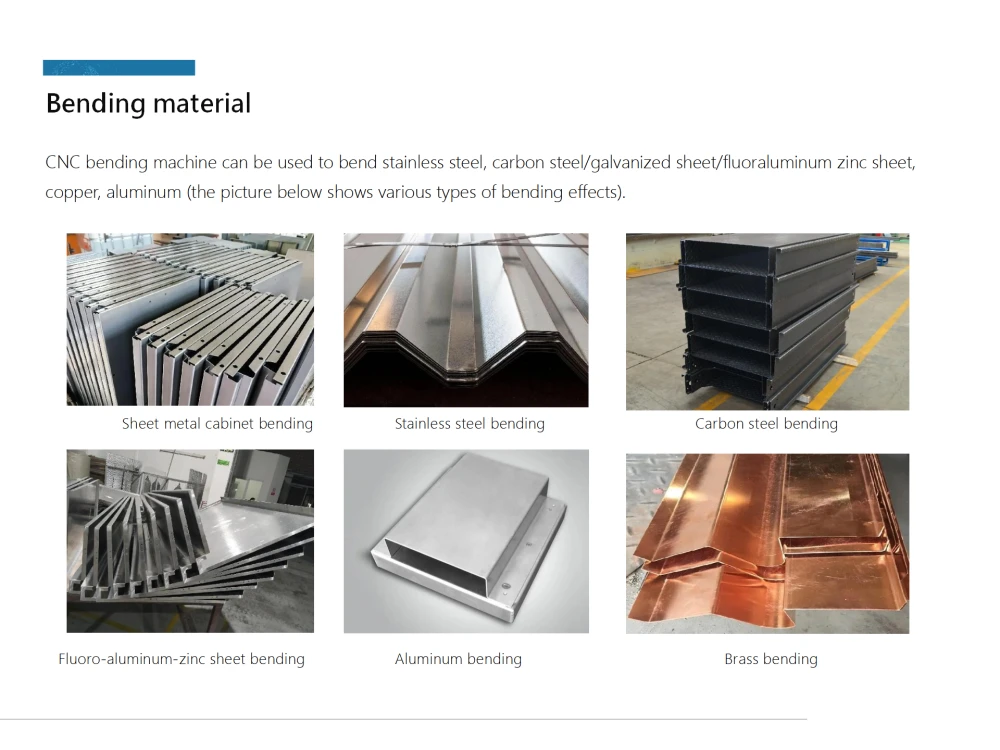

1.The bending machine is for bending metal sheets, especially in the field of sheet metal bending, which has a very important application;

2.Simple operation, high bending accuracy, and high consistency of bending workpieces, it is called a “timeless” bending machine;

3.The CNC bending machine has less hydraulic failures, low failures and low maintenance;

4.The CNC bending machine has high rigidity and high precision compensation to complete excellent bending.

5.The tensile strength and compressive strength of the main structure and the parallel lines of the table top deflection are all within the safe range.

6.This machine adopts Q235B  steel plate, and all the joints of the steel plates have grooves to ensure the strength of the whole machine.

7.The whole machine is annealed and stress relieved to ensure rigidity, strength, precision and structural stability.

8.The precision gantry milling machine processes the machine at one time to ensure the parallelism and verticality of each installation part.

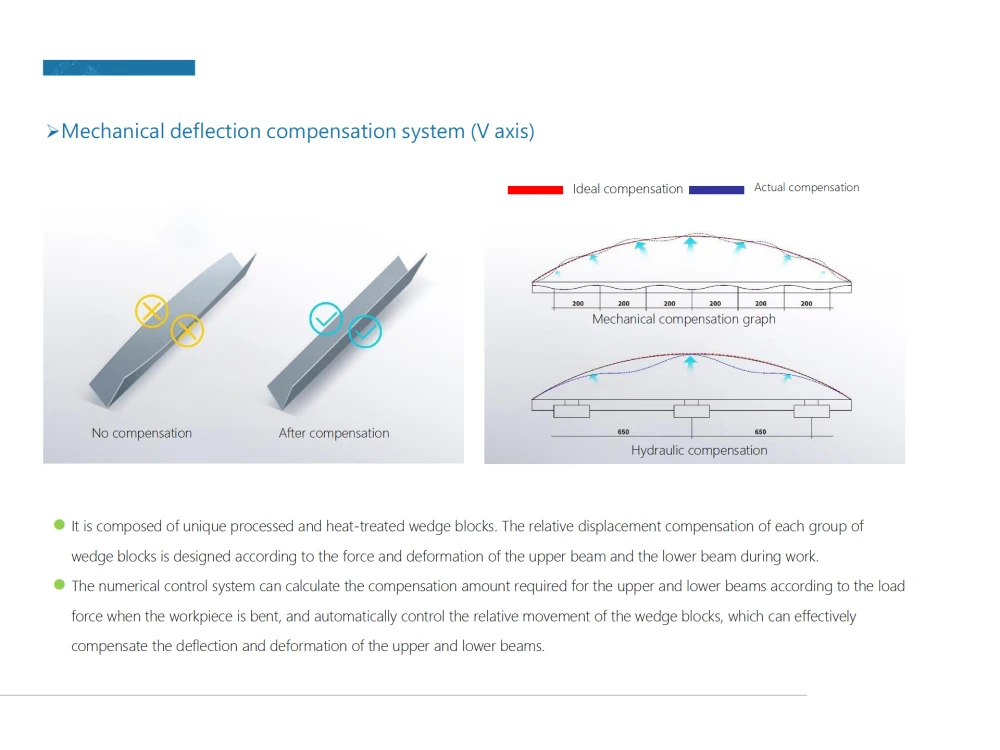

9.Vertical plate compensation system: The rack wall panel (opening) deformation compensation system is designed and developed by a professional technical team, through the “C” frame independent of the rack panel wall structure and the special automatic adjustment balance installed on it The device can effectively avoid the position feedback error of the grating ruler caused by the deformation (opening) of the frame wall panel under the reaction force during the bending process, and ensure the bending accuracy.
