1.Provide Multiple Models:The press brake, based on our years of cutting-edge bending technology and experience, is focusing on how
to improve bending efficiency and precision. We can offer various models and also accept personalized customization.

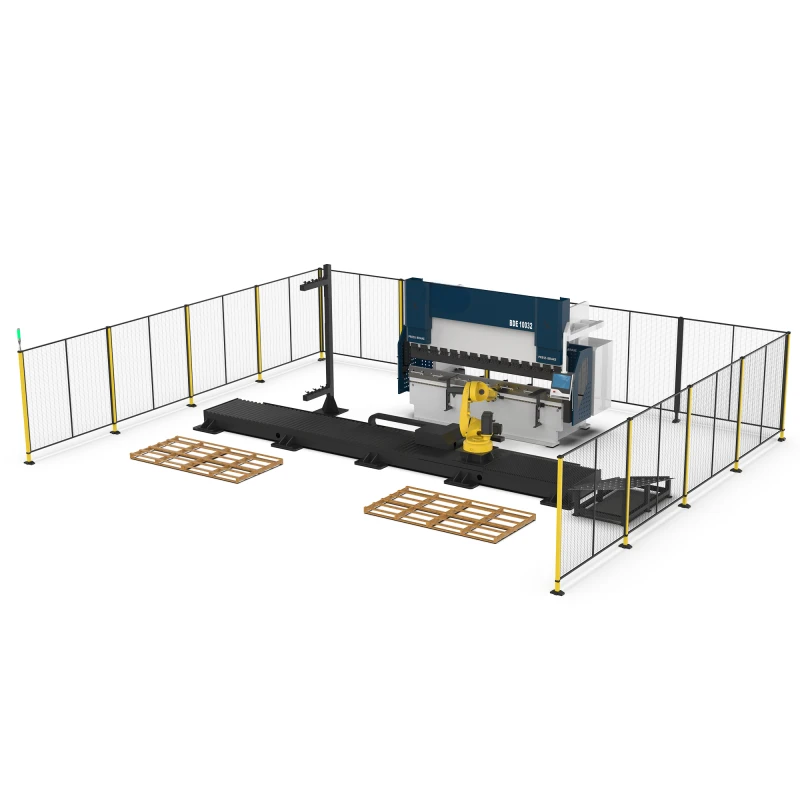

2.Fully-automatic Bending:The industrial robot can assist in sheet bending, loading & unloading, adjust sheet’s live location as well as turn sheet over. These actions make the whole bending process fully automated around the clock.
3.Bend the Longer Sheet:With tandem synchronizer, two press brakes can work with each other to bend ultra-long or common sheets at the same time, so that bending length is doubled. Independent work is also permitted.
4.Get Eco-friendly Effects:With servo drive, electric power is required only during bending. The machine is merely driven by electric power, with no need for hydraulic oil, hydraulic components, so as to avoid leakage or pollution caused by waste oil.
|
Model |
BDE4016 |
|
Maximum bending force |
400KN |
|
Bending length（A） |
1600mm |
|
Side rack spacing（B） |
1200mm |
|
Throat depth（E） |
250mm |
|
Maximum cylinder stroke |
160mm |
|
The distance between the table and the upper beam（D） |
460mm |
|
Speed |
Get down speed:180mm/s Working speed: 0-10mm/s Return speed: 160mm/s |
|
Main motor power |
5.5KW |
|
Dimensões（L*W*H） |
2100*1770*2395mm |
|
Peso |
3200kg |
Todas as nossas máquinas são embaladas profissionalmente em caixas de madeira fumigada com enchimento de espuma para envio internacional. Aceitamos os termos FOB, CIF e DDP através de frete marítimo, aéreo ou ferroviário.
O nosso engenheiro de vendas responderá no prazo de 12 horas com um orçamento pormenorizado e custos de envio.
